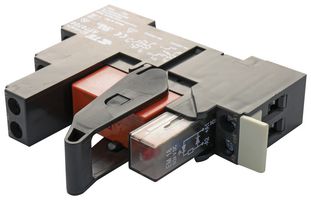

RT4S5LC4图片1

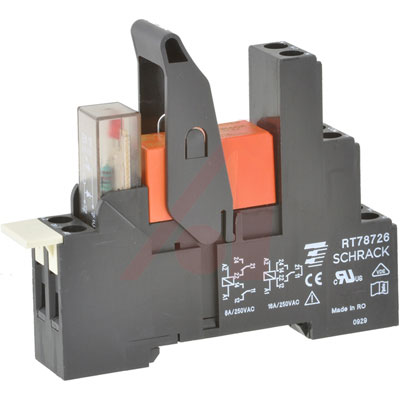

RT4S5LC4图片2
RT4S5LC4图片3
RT4S5LC4图片4
RT4S5LC4图片5
RT4S5LC4图片6
RT4S5LC4图片7
RT4S5LC4图片8
RT4S5LC4图片9
RT4S5LC4概述

功率继电器, DPDT, 24 VDC, 8 A, RT Package Series, DIN轨安装, 非闭锁

Tyco Electronics now offers several of their popular SCHRACK plug-in relays in “packages”. Each package includes a relay, socket and hold down. Some also include accessories such as protection circuits, LEDs and marking tags. This simplifies ordering and helps prevent situations where the wrong socket might be ordered for a given relay or where quantities of the various components do not correspond.

Packages are available for SNR, XT, PT and RT series relays. They find application on DIN rails in control panels in industrial machinery, alternative energy systems, elevators and other commercial equipment.

**Features:**

* Several Components Can Be Ordered Under One Part Number

* Quicker and Simpler Than Having to Assemble Components

* Packages Can Simply Be Snapped Onto DIN Rail

* Prevents Situations Where the Wrong Socket Might Be Ordered

RT4S5LC4中文资料参数规格
技术参数

额定电流 8 A

额定功率 400 mW

触点类型 DPDT

功耗 400 mW

线圈电压 24 VDC

线圈电流 16.7 mA

线圈电阻 1.44 kΩ

载流 8.00 A

线圈电压DC 24 V

额定电压 400 VAC

封装参数

安装方式 DIN Rail

引脚数 8

外形尺寸

宽度 15.8 mm

高度 77 mm

物理参数

触点材质 Silver Nickel

工作温度 -20℃ ~ 85℃

其他

产品生命周期 Unknown

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536490080

数据手册

在线购买RT4S5LC4
型号: RT4S5LC4
描述:功率继电器, DPDT, 24 VDC, 8 A, RT Package Series, DIN轨安装, 非闭锁
