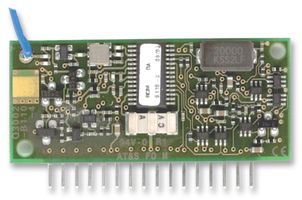

RCM120

ENOCEAN  RCM120  接收器模块

is a multifunctional receiver module used to receive and to process telegrams generated, transmitted by EnOcean radio transmitters. This module can be easily integrated into control and switching units for the implementation of different application specific system solutions. RCM120 has logic output signals controlled by EnOcean PTM piezo switches, tubular motor control up/down with slat acting, 1 or 2 motors or push button pressed/released. The RCM modules are part of a powerful RF system solution from EnOcean for operation and control application. The RCM modules operate together with the following further EnOcean components such as PTM battery less radio switches, STM battery less radio sensors, CTM remote control and TCM bi-directional IT interface.

.

Basic signal output function "pushbutton" of 1 channel

.

Basic signal output function "tubular motor control" UP/DOWN with slat acting: 1 or 2 channel

.

Easy to operate

.

CE certified and conformed by R&TTE EU-Directive on radio equipment

.

Pre-installed 9 cm whip antenna, external 50 Ohm antenna mountable

.

6 inputs for set up operating and learning modes

.

4 outputs, their function depends on the selected operation mode

.

RSSI output

.

Receiver frequency range up to 868.3MHz , channel bandwidth is 280kHz , sensitivity is -95dBm

.

5VDC ± 5 % / 29mA maximum current, without output load
