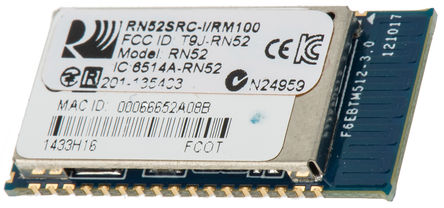

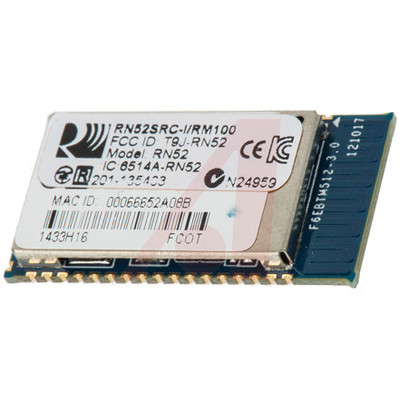

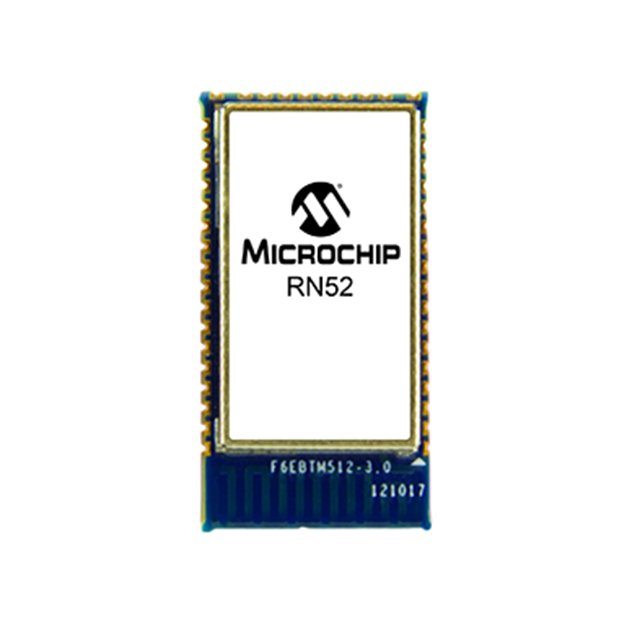

RN52SRC-I/RM100

MICROCHIP  RN52SRC-I/RM100  蓝牙, 3.0, 2.4GHZ, RN52SRC, V1.00

The is a Bluetooth Audio Module provides a highly integrated solution for delivering high quality stereo audio in a small form factor. It combines a class 2 Bluetooth radio with an embedded DSP processor. The module is programmed and controlled with a simple ASCII command language. This module complies with Bluetooth specification version 3.0. It integrates RF, a baseband controller, etc., making it a complete Bluetooth subsystem. It supports a variety of profiles including HSP/HFP, A2DP, AVRCP, SPP and iAP. It provides an UART interface, several user programmable I/O pins, stereo speaker outputs, microphone inputs and an USB port.

.

Fully qualified Bluetooth® version 3.0 module

.

Fully compatible with Bluetooth version 2.1+EDR, 1.2 and 1.1

.

Software configurable through commands over UART console interface

.

Dedicated GPIO pins enable MCUs to access control and status functions efficiently

.

Postage-stamp-sized form factor

.

A2DP, AVRCP, HFP/HSP and SPP embedded Bluetooth stack profiles

.

Dual-channel, differential audio input and output for highest quality audio

.

Supports iAP profile to discover iOS devices and apps

.

Integrated amplifier for driving 16R speakers

.

UART SPP data connection interfaces

.

External audio CODECs supported via S/PDIF and I2S interface

.

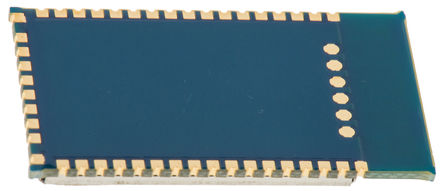

Castellated SMT pads for easy and reliable PCB mounting
