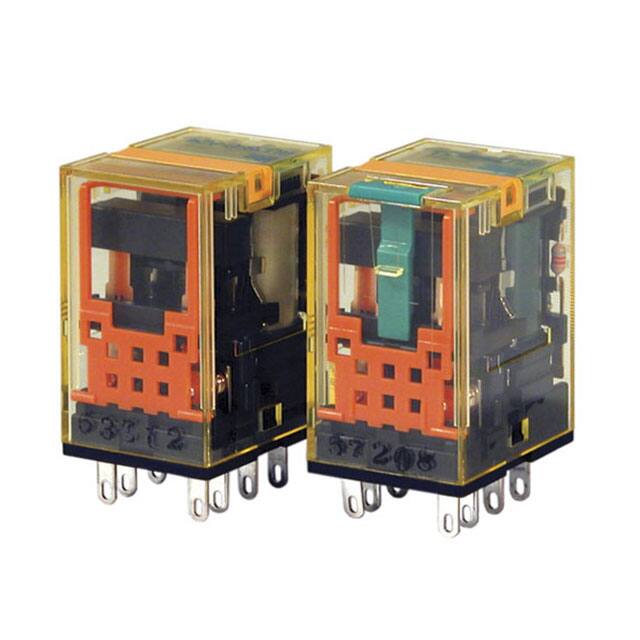

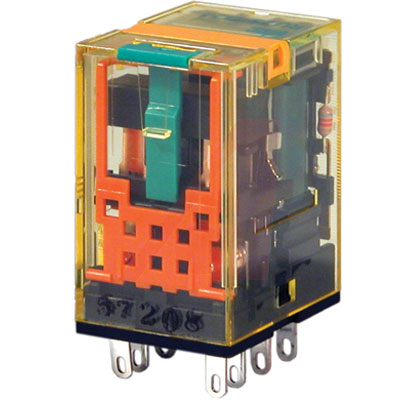

IDEC RU2S-A220 插入式继电器
**Full featured universal miniature relays**
**Designed with environment taken into consideration**
Two terminal styles: plug-in and PCB mount
Non-polarized LED indicator available on plug-in relays
No internal wires, lead-free construction
Cadmium-free contacts
Mechanical fl ag indicator available on plug-in relays
Manual latching lever with color coding for AC or DC coil
Snap-on yellow marking plate; optional marking plates are available in four other colors
额定电压DC 30 V
额定电压AC 250 V
额定电流 10 A
触点类型 DPDT
触点额定电流 10 A
线圈电压 220 VAC
线圈电流 3.6 mA
线圈电压AC 220 V
线圈电阻 18.23 kΩ
载流 10.0 A
额定电流Max 10 A
额定功率Max 300W, 2.5KVA
额定电压 250 VAC
安装方式 Plug In
引脚数 8
封装 Through Hole
长度 27.5 mm
宽度 41.6 mm
高度 21 mm
封装 Through Hole
触点材质 Silver
工作温度 -55℃ ~ 60℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 无铅
ECCN代码 EAR99
HTS代码 8536410050
