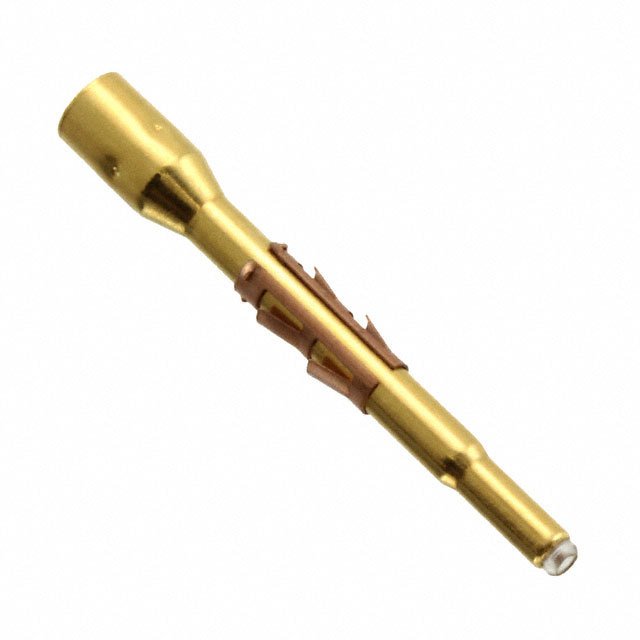

SOURIAU RMDX60-50D28 压接针脚触点
** RMDX/RCDX Series - Size 16 Multi-piece COAXIAL Contacts for TRIM TRIO Connectors:**
Size 16 RMDX/RCDX Multi-piece .0625’’ 1.6mm diameter contacts are subminiature coaxial contacts to cover a wide range of subminiature coaxial and twisted pair cables. They are suitable in applications where a mix of signal, power and coaxial cable terminations for low frequency, shielded signal and high frequency applications are needed. The contact consists of an inner pin/socket and an outer male/female body. The thermoplastic insulating bushing in the outer body is designed to accept and permanently retain the inner contact. The outer ferrule hold the outer braid to the outer contact and act as an insulating support to ensure against bending and vibrating stresses. The inner and the outer conductors are crimped individually, thereby enabling inspection of both critical crimp points.
**Features:**
* The inner and outer conductors are crimped individually.
* The thermoplastic insulating bushing in the outer body is designed to accept and permanently retain the inner contact.
* Outer ferrule hold the outer braid to the outer contact and act as an insulating support to ensure against bending and vibration.
Any TRIM TRIO size 16 contact can be used in any contact position in any connector in the TRIM TRIO size 16 interconnection system:
* MS-M / MSG / MB
* SMS Qikmate
* UTG
* UTP
* UT0
* MBG
