RADIALL R941460000 香蕉插头, 可堆叠, 30A, 压接, 黑色

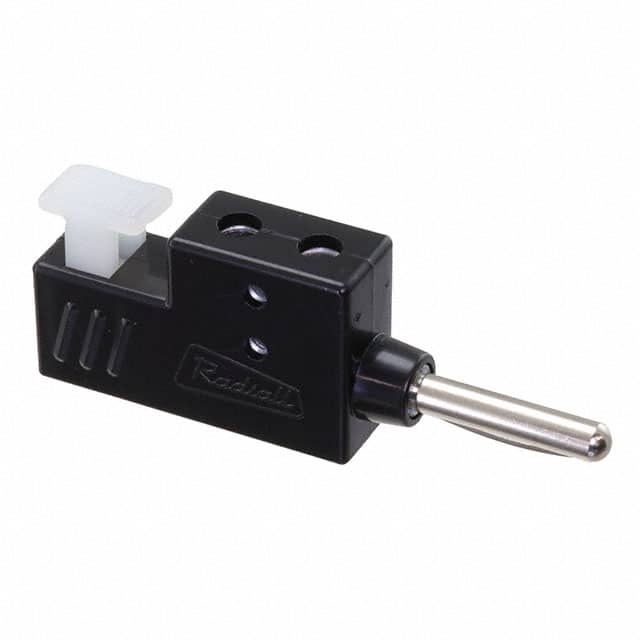

The from is a black colour insulated banana plug. It is standard Ø4mm stackable banana plug with quick-grip clamp for stripped cable which meets NFC 93440 standards.
-
.
-
Rapid connection with stripped cable
-
.
-
Maximum current rating is 30A at 20°C
-
.
-
Operating voltage is 750Vrms at 50Hz
-
.
-
Dielectric withstanding voltage is 2500Vrms at 50Hz
-
.
-
Minimum insulation resistance is 5000Mohm
-
.
-
Maximum contact resistance is 0.5mohm
-
.
-
Temperature range from -60°C to 100°C
It is not intended for hand held use at voltage above 30VAC/60VDC.
