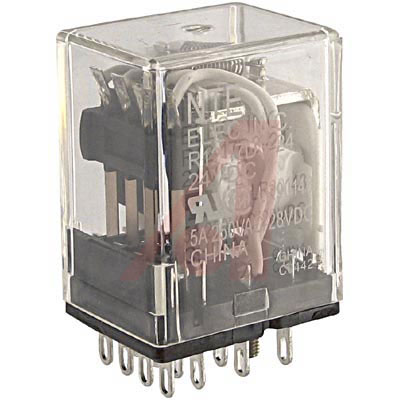

NTE ELECTRONICS R12-17D3-24 功率继电器, 24VDC
General Purpose Relay, 4PDT Contact Form, R12 Series
* See-thru plastic cover
* Indicator lamp types
* Push-to-test button types
* Bifurcated contact type
** Features**
* Slightly Larger Than 1 Cubic Inch
* Clear Plastic Dust Cover
* High Reliability, 50 Million Operations
* Plug-In or Solder Terminals
** Electrical Specifications**
* Operating Time: 25 mS or Less
* Release Time: 25 mS or Less
* Duty Cycle: Continuous
* Operating Temperature: -30° to +55°C
额定电压DC 28 V
额定电压AC 120 V
额定电流 5 A
额定功率 900 mW
触点类型 4PDT
功耗 900 mW
触点额定电流 5 A
线圈电压 24 VDC
线圈电流 36.92 mA
线圈电阻 650 Ω
载流 5.00 A
额定电流Max 5 A
线圈电压DC 24 V
工作温度Max 55 ℃
工作温度Min -30 ℃
额定电压 240 VAC
安装方式 PCB, Plug In, Solder
引脚数 14
高度 32.8 mm
触点材质 Silver Cadmium Oxide
工作温度 -30℃ ~ 55℃
产品生命周期 Unknown
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
R12-17D3-24 NTE Electronics | 当前型号 | 当前型号 |
HC4-H-DC24V 松下 | 功能相似 | R12-17D3-24和HC4-H-DC24V的区别 |
KHAU-17D11-24 泰科 | 功能相似 | R12-17D3-24和KHAU-17D11-24的区别 |
KHU-17D12-24 泰科 | 功能相似 | R12-17D3-24和KHU-17D12-24的区别 |
