R161332000

RADIALL  R161332000  射频/同轴连接器, N型同轴, 直型隔板安装插座, 焊接, 50 ohm, RG11, RG144, RG165, RG213, RG214, RG216, RG225, RG393, 铍铜

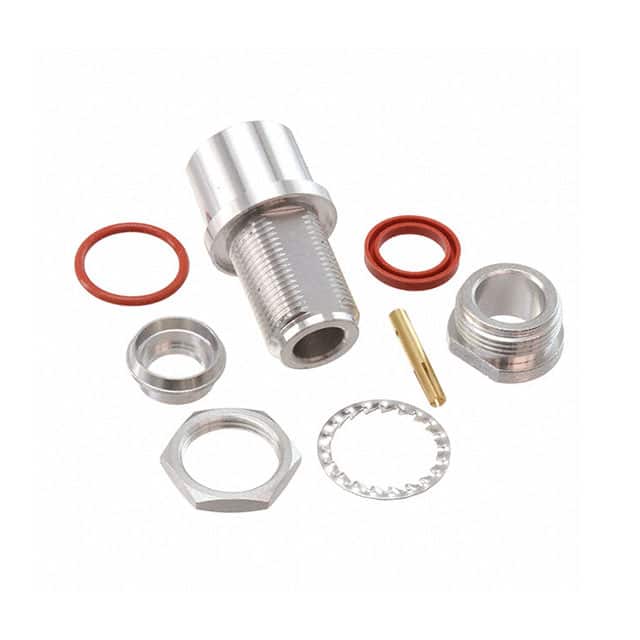

The is a bulkhead panel seal clamp N-type Straight Jack for use with RG11, RG144, RG165, RG213, RG214, RG216, RG225 and RG393 RF coaxial cables. It has BBR2-plated brass body with gold over nickel plated beryllium copper centre contact and a PTFE insulator.

.

5000MR Minimum insulation resistance

.

2500Veff Minimum dielectric withstanding voltage

.

1400Veff Maximum voltage rating

.

500-cycle Mating life

.

-55 to 155°C Operating temperature range
