RLF12545T-2R7N8R7-PF

TDK  RLF12545T-2R7N8R7-PF  电源线电感, 2.7UH, 8.7A, 30%, 整卷

固定器

得捷:
FIXED IND 2.7UH 8.7A 5.4MOHM SMD

立创商城:
2.7uH ±30% 8.7A 5.4mΩ

欧时:

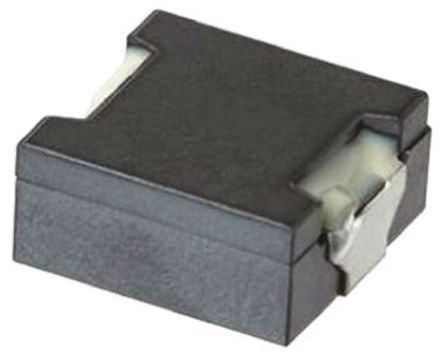

TDK RLF12545 系列 2.7 μH 绕线贴片电感器 RLF12545T-2R7N8R7-PF, ±30%容差, 12A Idc, 4.5mΩ最大直流电阻

贸泽:
Fixed Inductors 2.7uH 8.7A 30% 12.5x12.8x4.5mm

e络盟:
电源线电感, 2.7UH, 8.7A, 30%, 整卷

艾睿:

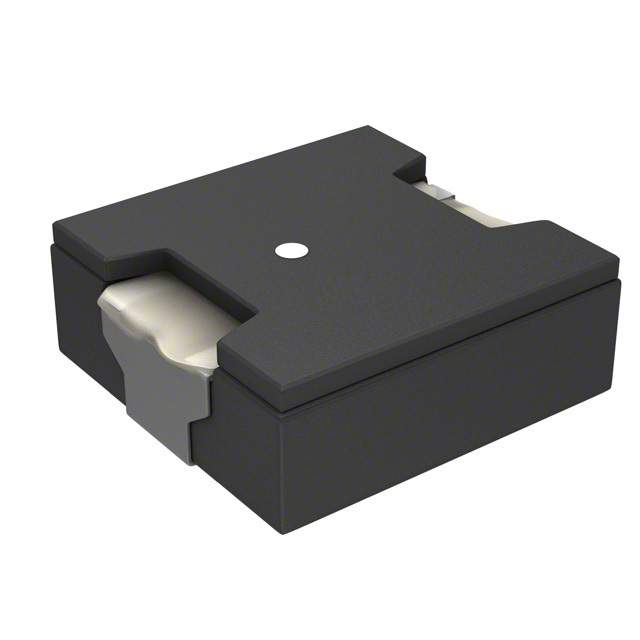

This power RLF12545T-2R7N8R7-PF surface mount inductor from TDK is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its test frequency is 100K Hz. It has an inductance of 2.7u H. This device is made with wirewound technology. This product is 13.3 mm long, 4.7 mm tall and 13 mm deep. This SMD inductor has a maximum DC current of 8.7 A with a maximum resistance of 5.4m Ohm.

安富利:
Ind Power Shielded Wirewound 2.7uH 30% 100KHz 8.7A T/R

Chip1Stop:
Ind Power Shielded Wirewound 2.7uH 30% 100KHz 8.7A T/R

Verical:
Inductor Power Shielded Wirewound 2.7uH 30% 100KHz Ferrite 8.7A 0.0054Ohm DCR T/R

Newark:
Power Inductor SMD, RLF Series, 2.7 µH, 8.7 A, 12 A, Wirewound, 4500 µohm

MASTER:
Inductor Power Shielded Wirewound 2.7uH 30% 100KHz Ferrite 8.7A 5.4mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 2.7uH 30% 100KHz Ferrite 8.7A 5.4mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 2.7uH 30% 100KHz Ferrite 8.7A 5.4mOhm DCR T/R

Win Source:
2.7μH Shielded Wirewound Inductor 8.7A 5.4 mOhm Max Nonstandard
