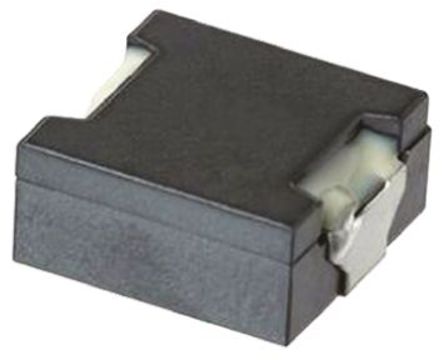

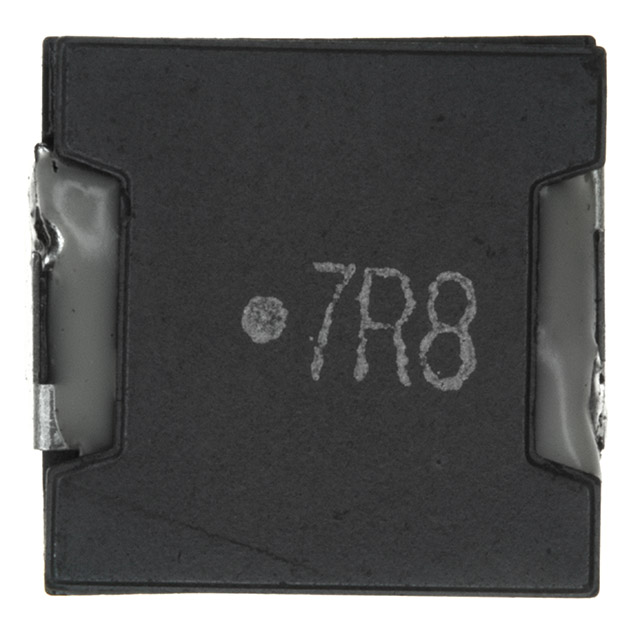

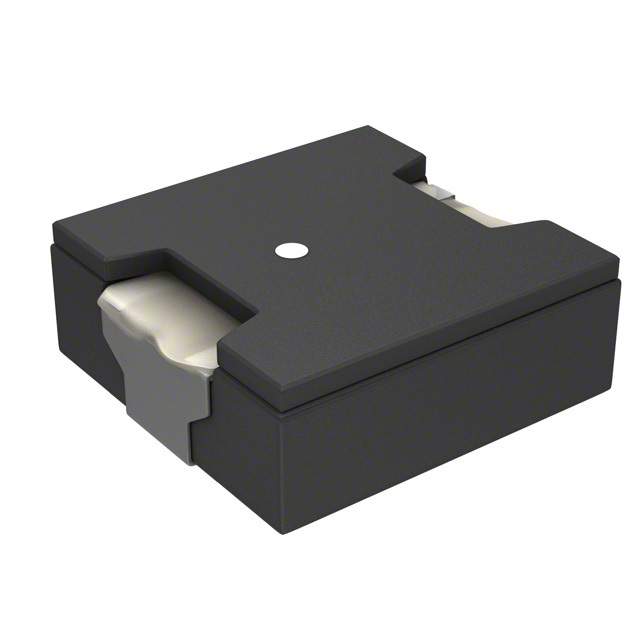

TDK RLF12545T-7R8N5R4-PF 表面贴装功率电感器, RLF系列, 7.8 µH, ± 30%, 绕线, 0.0102 ohm, 5.4 A
RLF12545 系列线绕扼流圈
薄型屏蔽电源线路 EMI 缩减器
应用包括笔记本电脑和移动计算机、娱乐设备、汽车设备等
### 非标准 SMT 电感器(扼流圈)
得捷:
FIXED IND 7.8UH 5.4A 12.24 MOHM
欧时:
### RLF12545 系列线绕扼流圈薄型屏蔽电源线路 EMI 缩减电感器 应用包括笔记本电脑和移动计算机、娱乐设备、汽车设备等 ### TDK 非标准 SMT 电感器(扼流圈)
e络盟:
TDK RLF12545T-7R8N5R4-PF 表面贴装功率电感器, RLF系列, 7.8 µH, ± 30%, 绕线, 0.0102 ohm, 5.4 A
艾睿:
This power RLF12545T-7R8N5R4-PF surface mount inductor from TDK is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 5.4 A with a maximum resistance of 12.24m Ohm. This device is made with wirewound technology. Its test frequency is 100K Hz. It has an inductance of 7.8u H. This product is 13.3 mm long, 4.7 mm tall and 13 mm deep.
安富利:
Ind Power Shielded Wirewound 7.8uH 30% 100KHz 5.4A T/R
Chip1Stop:
Inductor Power Shielded Wirewound 7.8uH 30% 100KHz Ferrite 5.4A 12.24mOhm DCR T/R
Verical:
Inductor Power Shielded Wirewound 7.8uH 30% 100KHz Ferrite 5.4A 0.01224Ohm DCR T/R
MASTER:
Inductor Power Shielded Wirewound 7.8uH 30% 100KHz Ferrite 5.4A 12.24mOhm DCR T/R
Online Components:
Inductor Power Shielded Wirewound 7.8uH 30% 100KHz Ferrite 5.4A 12.24mOhm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 7.8uH 30% 100KHz Ferrite 5.4A 12.24mOhm DCR T/R
Win Source:
7.8μH Shielded Wirewound Inductor 5.4A 12.24 mOhm Max Nonstandard
额定电流 5.4 A
容差 ±30 %
电感 7.8 µH
产品系列 RLF
电阻 10.2 mΩ
屏蔽 Yes
电感公差 ±30 %
测试频率 100 kHz
电阻DC) ≤12.24 mΩ
工作温度Max 105 ℃
工作温度Min -20 ℃
电阻DC Max 0.0102 Ω
安装方式 Surface Mount
引脚数 2
封装 12.8mm x 12.5mm x 4.7mm
长度 12.5 mm
宽度 12.8 mm
高度 4.7 mm
封装 12.8mm x 12.5mm x 4.7mm
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8504508000
