RLF12560T-5R6N9R2

5.6uH ±30% 编带

屏蔽 绕线 器 8.5 毫欧 非标准

立创商城:
5.6uH ±30% 9.2A 8.5mΩ

得捷:
FIXED IND 5.6UH 9.2A 8.5MOHM SMD

欧时:
RLF12560 系列 SMT 电感器 5.6uH 9.2A

艾睿:

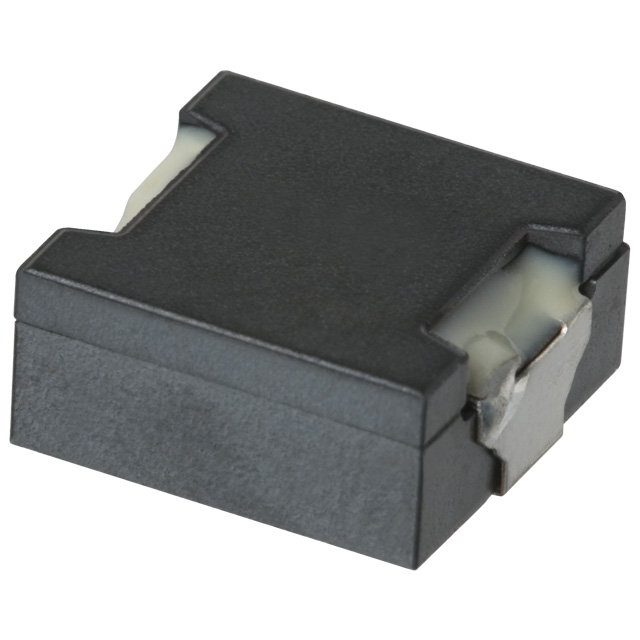

This power RLF12560T-5R6N9R2 surface mount inductor from TDK is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its test frequency is 100K Hz. This product is 13.3 mm long, 6 mm tall and 13 mm deep. It has an inductance of 5.6u H. This SMD inductor has a maximum DC current of 9.2 A with a maximum resistance of 10.2m Ohm. This device is made with wirewound technology.

安富利:
Ind Power Shielded Wirewound 5.6uH 30% 100KHz 9.2A T/R

Chip1Stop:
Ind Power Shielded Wirewound 5.6uH 30% 100KHz 9.2A T/R

Verical:
Inductor Power Shielded Wirewound 5.6uH 30% 100KHz Ferrite 9.2A 0.0102Ohm DCR T/R

Newark:
# TDK  RLF12560T-5R6N9R2  Surface Mount Power Inductor, RLF Series, 5.6 µH, 9.2 A, 9.7 A, Wirewound, 8500 µohm

MASTER:
Inductor Power Shielded Wirewound 5.6uH 30% 100KHz Ferrite 9.2A 10.2mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 5.6uH 30% 100KHz Ferrite 9.2A 10.2mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 5.6uH 30% 100KHz Ferrite 9.2A 10.2mOhm DCR T/R

Win Source:
5.6μH Shielded Wirewound Inductor 9.2A 10.2 mOhm Max Nonstandard
