RQ2V-CN-A115

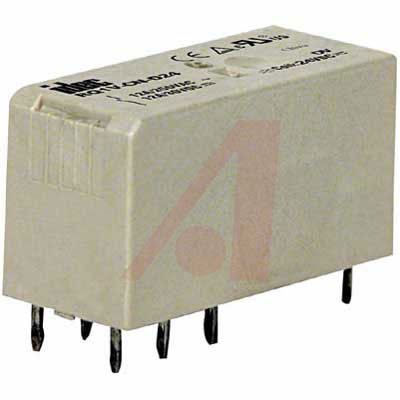

IDEC  RQ2V-CN-A115  继电器, PCB安装, DPDT, 120V

RQ Series Relay, 100 milliohms Max. Contact Resistance

The low profile RQ PCB relay is a compact, quality, value relay for your printed circuit board relay applications. With industry standard 3.5 mm and 5 mm pin terminal separation, the relay is only 16 mm in height, 13 mm in width and 29 mm in depth giving you the most compact solutions for your boards while keeping the high contact ratings you expect from .

* Contact Rating

— 12 A SPDT

— 8 A DPDT

* Power Relay Model with 16 A SPDT Contact Rating

* Low Height Profile 13 × 16 × 29 mm W × H × D

* High Operation Life

— 100K Cycles at Full Resistive Load

— 10 Million Cycles, No Load

* LED/Diode Plug in Modules Available with DIN Rail Socket

* RQ Relays Are UL and c-UL Recognized, T\"dcV Approved and CE Marked

* Lead-Free
