RASM722PTR13X

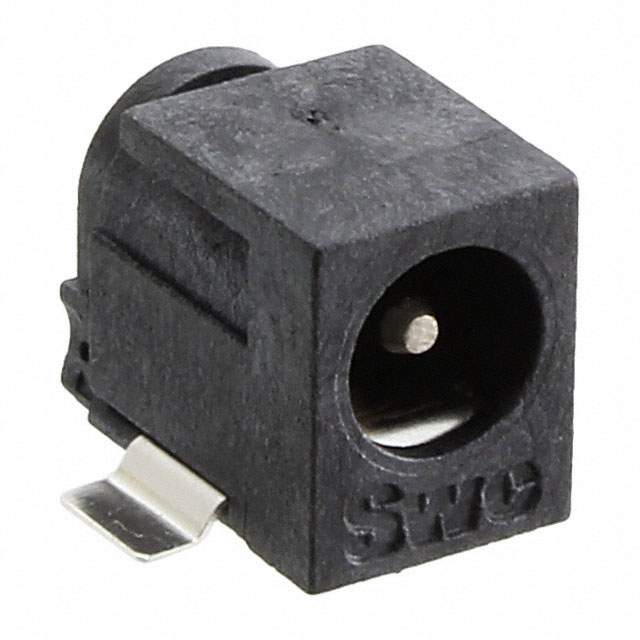

RASM722PTR13X图片1
RASM722PTR13X图片2
RASM722PTR13X图片3
RASM722PTR13X图片4
RASM722PTR13X概述

Conn Power PL 2POS Solder RA SMD 3 Terminal 1Port T/R

Use this power connector from Switchcraft to connect a power supply to a circuit. This PL connector"s 2 contacts that are made out of brass and plated with nickel. It has a right angle body orientation. This connector has a single port. It has a plug type gender. This device has a maximum current rating of 5 A. RASM722PTR13X is housed in thermoplastic. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its 3 terminals use the solder termination method. This product is 15.2 mm long, 11 mm tall and 17.1 mm deep.

RASM722PTR13X中文资料参数规格
技术参数

触点数 2

极性 Male

额定电流 5 A

绝缘电阻 30 MΩ

拔插次数 5000

额定电流Max 5 A

接触电阻Max 30 mΩ

封装参数

安装方式 Surface Mount

外形尺寸

高度 11 mm

物理参数

颜色 Black

触点材质 Brass

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买RASM722PTR13X
型号: RASM722PTR13X
制造商: Switchcraft / Conxall
描述:Conn Power PL 2POS Solder RA SMD 3 Terminal 1Port T/R
