TDK LAMBDA RWS600B15 /t稳压电源

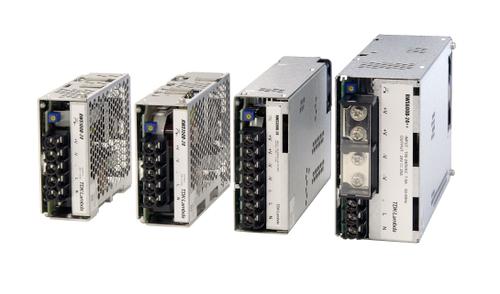

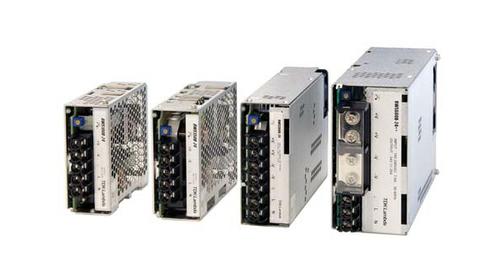

RWS-B Series 100W to 600W Single Output General Purpose Power Supplies
* Low Cost
* Wide Range AC Input 85-265 VAC 300 VAC for 5s
* UL508 Certification on Select Models
* Enclosed Construction
* Compact Size
* 5-Year Warranty
得捷:
AC/DC CONVERTER 15V 600W
e络盟:
稳压电源
艾睿:

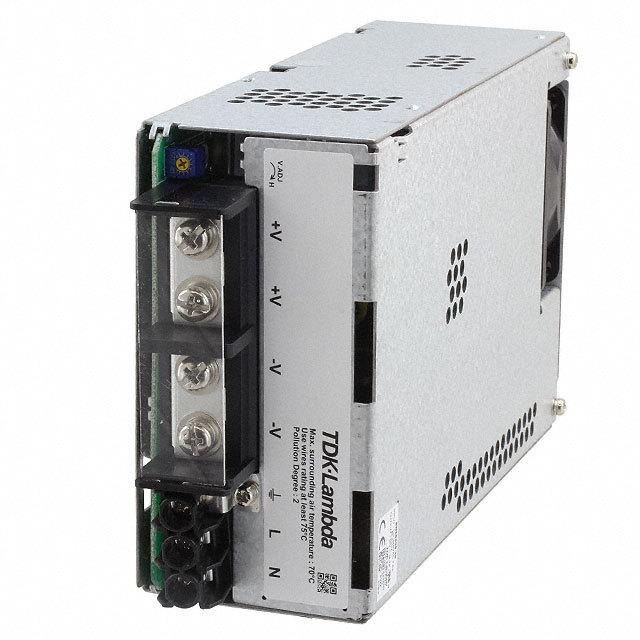

This RWS600B15 AC to DC power supply from TDK-Lambda converts an alternating current source to a direct current supply. It has a voltage of 15 V and maximum output power of 600 W. This part&s;s single output can handle a current up to 40 A. This part has a minimum operating temperature of -10 °C and a maximum of 70 °C.
Allied Electronics:
Power Supply; 115230VAC, Output 15V 40A, 600W
额定功率 600 W
输出接口数 1
输出电压 15 V
输出电流 40 A
输出功率 600 W
隔离电压 3 kV
输入电压DC Max 330 V
输入电压DC Min 120 V
输入电压AC Max 265 v
输入电压AC Min 85 v
输出电流Max 40 A
输入电流Min 7.2 A
输出功率Max 600 W
工作温度Max 70 ℃
工作温度Min -20 ℃
输入电压 85VAC ~ 265VAC
安装方式 Chassis
工作温度 -10℃ ~ 70℃
产品生命周期 Active
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RWS600B15 TDK 东电化 | 当前型号 | 当前型号 |
SWS600-15 东电化 | 功能相似 | RWS600B15和SWS600-15的区别 |
