RM35TF30

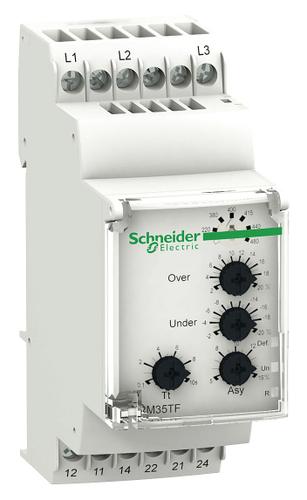

SCHNEIDER ELECTRIC RM35TF30 Phase Monitoring Relay, Multifunction, Zelio Series, DPDT, 5A, DIN Rail, Screw, 250V

The from Schneider is a Zelio multifunction phase control relay. The phase control relay monitors phase sequence, loss of one or more phases, unbalance level, voltage level between phases or between phases and neutral. Typical applications include 3 phase motors, moving 3 phase machines and equipment, overhead cranes, winches, lifts, goods lifts, escalators, travelators, pumps, fans, air extractors, mining excavators and conveyors.

.

DPDT configuration

.

Supply voltage range from 220VAC to 480VAC

.

Output current is 5A

.

Adjustable time delay

.

IP20, IP30 degree of protection

.

Clear display of control state by LEDs

.

Measurement range from 194VAC to 528VAC

.

Power consumption is 2.9VA
