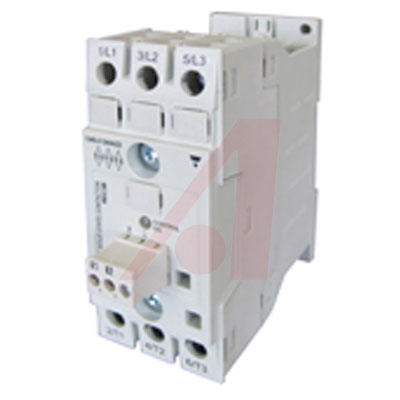

CARLO GAVAZZI REC2R60A30GKE Solid State Contactor, 7.6A, 600VAC, Random Turn On, DIN Rail, Panel, Screw, 253VAC
REC is an electronic contactor intended to replace the traditional mechanical counterpart used to switch three phase motors. The range includes 2 and 3 phase switching versions up to 4 kW and 600 Vrms. Options with high surge current and I2t for fusing purposes are also available.
The relay switches instantaneously upon application of the control voltage to emulate mechanical relay operation.A covered heatsink resolves any issues with regards to cables running close to the heatsink and eliminates the need for protective earth cabling. The product can be mounted on DIN-rail or on a panel.
Note: Specifications stated at 25°C unless specified.
* AC Electronic Motor Contactor
* Instantaneous Switching
* Three Pole with Two-Phase and Three-Phase Switching Options
* Control Status LED Indication
* Two Control Input Ranges: 15-32 VDC, 90-253 VAC
* Motor Rating Up to 4 kW/5.5 hp
* Rated Operational Voltage Up to 600 VAC
* Opto-Isolation at 4 kVrms
* Mechanical Contactor Resemblance with Covered Heatsink
* DIN-Rail and Panel Mounting
