RCHS1902824BK1概述

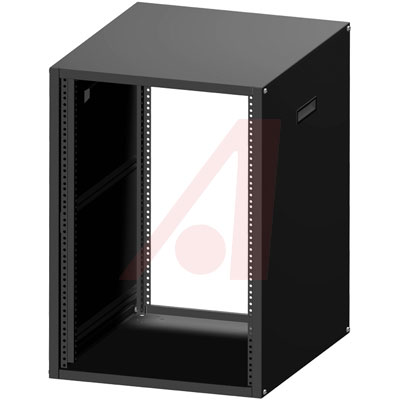

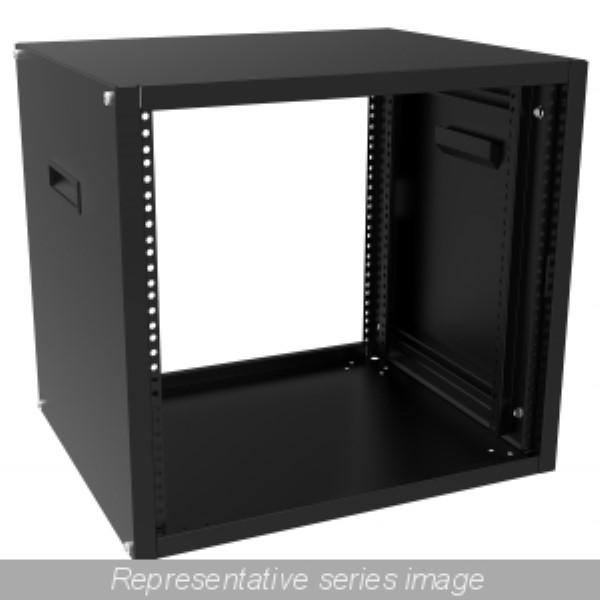

Rack, Cabinet; Desktop; 19In; 16U/28In; 24.5In Depth; Black; 800Lb Cap; RCHS Series

* Heavy Duty, 16-Gauge Steel, 19" Table Top Rack Cabinet

* Panel Rails Are Infinitely Adjustable Front to Back, Round Hole Punched for 10-32 Clip-Nuts to Full EIA Hole Centers 5⁄8-5⁄8-1⁄2 Inch Spacing

* Includes Two Pairs of Rails for Rear Support of Heavier Equipment, Rubber Feet, Black ABS Plastic Handles, a Starter Pack of 10-32 Clip Nuts and Matching 1421ABK Black Screws

* Supplied Unassembled Four Cabinet Pieces and Four Rails, Shipped in a Flat Pack Container for Handling Ease and Protection

* Simple Assembly Using One Bolt in Each Corner to Lock the Sides to the Top and Bottom Hardware Included

* Overall Width 21"

* Overall Height 2" Over Panel Space

* Front and Back Lip is 0.585" So Usable Depth Is Reduced by 1.17"

* Recommended Maximum Weight RCHS1902824 Tested — 800 Pounds

* Rugged Textured Powder Paint Finish

RCHS1902824BK1中文资料参数规格
外形尺寸

长度 622 mm

宽度 533 mm

高度 2 in

厚度 1.21 mm

物理参数

外壳颜色 Black

颜色 Black

材质 Steel

重量 25.4 kg

其他

包装方式 Box

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买RCHS1902824BK1
型号: RCHS1902824BK1
制造商: Hammond Manufacturing
描述:Rack, Cabinet; Desktop; 19In; 16U/28In; 24.5In Depth; Black; 800Lb Cap; RCHS Series
