RE969-01

RE969-01 适配器 TSOP56适配电路板，用于 TSOP56，节距为 0.635 mm 环氧纤维玻璃 FR4 1.50 mm 双面 35 μM 铜 电镀通孔 PTH 表面化学处理 镍/金 焊接停止掩膜 孔间距 2.54 mm 孔直径 1.10 mm，焊接垫直径 2.10 mm 屏蔽垫和冷却场 ### 表面安装板

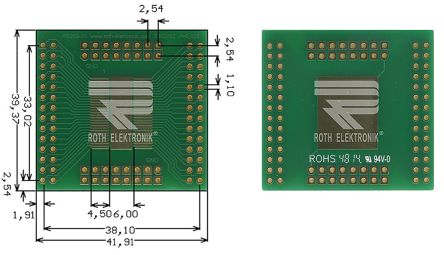

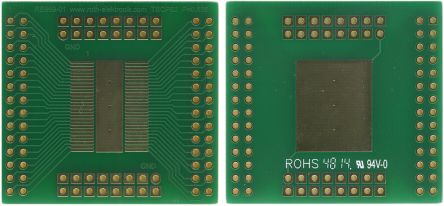

The is an IC Adapter with 2.54mm pitch spacing. It is an adaption circuit board for TSOP56 with 0.635mm pitch. It has shield pad and cooling field.

.

Double-sided 35µm copper Cu

.

Plated through holes PTH

.

Ni/Au surface chemical

.

Solder stop mask

.

1.50mm Epoxy fibre-glass
