RE945-S2

RE945-S2 可焊接试验电路板 40 引脚插座适配电路板，用于 40 引脚插座，距离为 15.24 mm 环氧纤维玻璃 FR4 1.50 mm 双面 35 μM 铜 电镀通孔 PTH 热空气调平（HAL 无铅） 焊接停止掩膜 孔间距 2.54 mm 20 个三孔垫和 2 x 20 双孔垫（每侧） U 形电势条 ### 条紋板 - 矩阵板

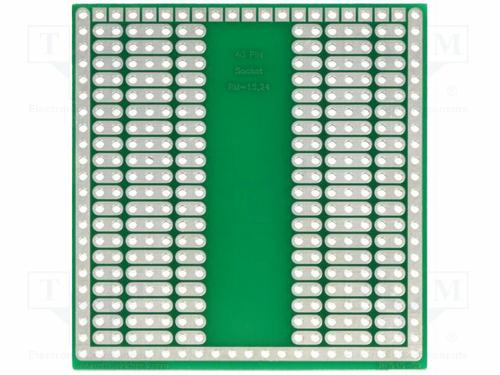

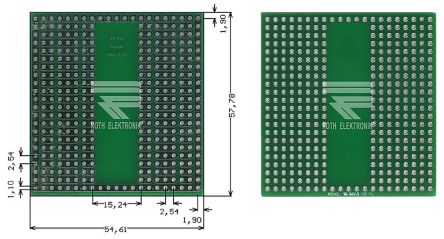

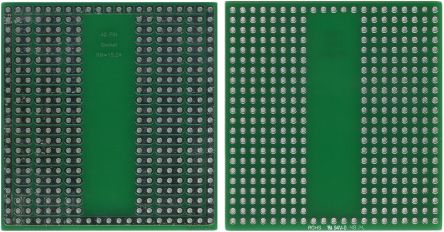

The is a Solderable Bread Board made up of epoxy fibreglass. It offers adaption circuit board for 40-pin sockets with a distance of 15.24mm.

.

Double-sided 35µm copper Cu

.

Plated through holes PTH

.

Solder stop mask

.

2.54mm Hole spacing

.

U-shape potential strip
