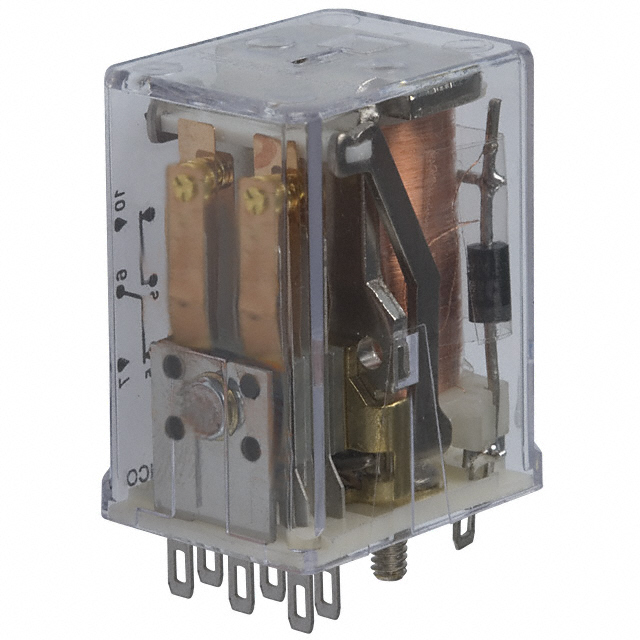

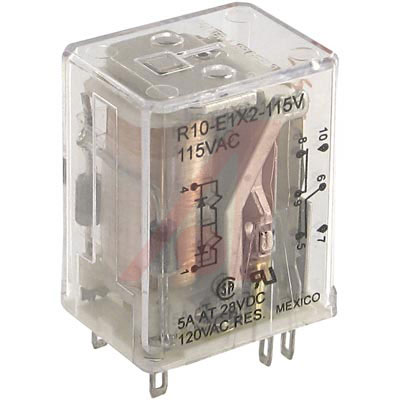

Electromechanical Relay 115VAC 9KΩ 5A DPDT 24.13mm 18.67mm 30.15mm Plug-In General Purpose Relay
**R10 Series — General Purpose Dry Circuit to 7.5 Amp Multicontact AC or DC Relay
Features- .
- *
* Broad range of coil options provide sensitivity ranging from 25-750 mW
* Various contacts switch from dry circuit to 7.5 A
* Many mounting and termination options
艾睿:
Electromechanical Relay 115VAC 9KOhm 5A DPDT 24.13mm 18.67mm 30.15mm Plug-In General Purpose Relay
Allied Electronics:
Relay; 500 mA Min.; 120 VAC; 115 VAC; Single Button; UL Listed; CSA Certified
Chip1Stop:
Electromechanical Relay DPDT 5A 115VAC 9KOhm Plug-In
Verical:
Electromechanical Relay 115VAC 9KOhm 5A DPDT 24.13mm 18.67mm 30.15mm Plug-In General Purpose Relay
MASTER:
Power Relay 115VAC 5A DPDT29.6x18.7x30.2mm Socket
Electro Sonic:
Power Relay 115VAC 5A DPDT29.6x18.7x30.2mm Socket
额定电压DC 30 V
额定电压AC 120 V
额定电流 5 A
额定功率 2.20 W
触点类型 DPDT
触点额定电流 5 A
线圈电压 115 VAC
线圈电压AC 115 V
线圈电阻 9 kΩ
载流 5.00 A
额定电流Max 5 A
工作温度Max 75 ℃
工作温度Min -55 ℃
额定电压 120 VAC
安装方式 Solder Lug, Plug In
引脚数 10
长度 24.13 mm
宽度 18.7 mm
高度 30.15 mm
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 75℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410020
