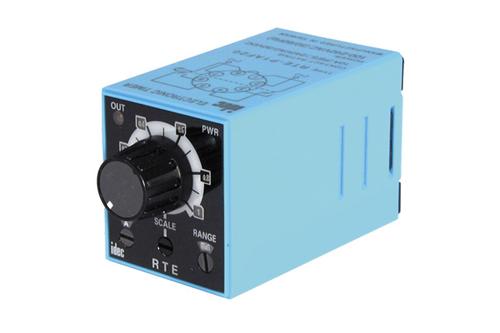

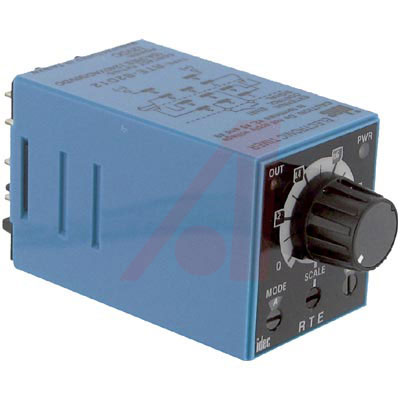

IDEC RTE-B2D12 Analog Timer, Multi Mode, CMOS, RTE Series, Multifunction, 20 Ranges, 0.1 s, 600H
**Specifications Input Voltages:** 120-240 VAC +10% to –20% 50/60 Hz; 12 VDC, ±10%; 24 VAC/VDC, +10% to –15%. **Contact Configuration:** 2 Form C, DPDT delay outputs. **Contact Load Ratings:** 10 A resist. @ 240 VAC, 30 VDC; 7 A inductive @ 240 VAC, 30 VDC; 1⁄6 HP @ 120 VAC; 1⁄3 HP @ 240 VAC. **Power Consumption:** 2.2 VA, maximum. **Repeat Accuracy:** ±0.25% maximum, 10 ms. **Reset Time:** 0.1 second, maximum. **Dielectric Strength:** 1500 VAC, 1 minute between power and output terminal, except between contacts of the same pole. **Life Expectancy:** Mechanical — 50,000,000 operations; Electrical 250,000 operations. **Features:**
* Multifunction Operation: On-Delay/Interval or Off-Delay/Single-Shot
* Multi-Time Range Settings from 0.1 Second to 600 Hours
* High Repeat Accuracy of ±0.25%
* Standard Pin or Blade Termination
* UL Listed, C-UL Listed, TÜV Tested, CE Marked
