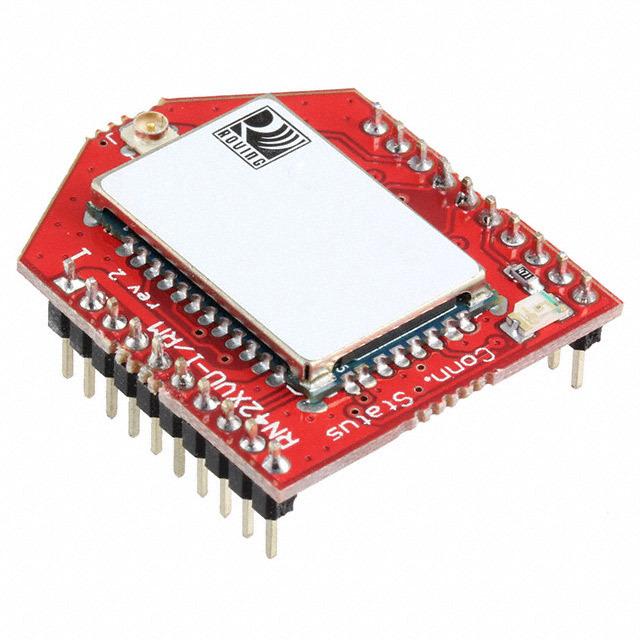

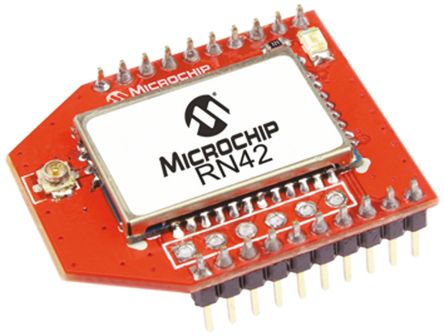

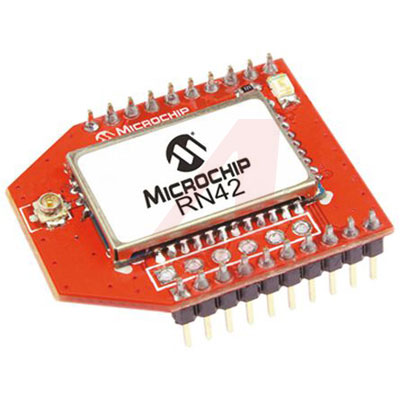

MICROCHIP RN42XVU-I/RM 受限产品, 模块, BT/802.15.1 XV CL2, UFL连接器
The is a small form factor, low-power Bluetooth radio module offering plug-in compatibility for the widely used 2 x 10 2-mm socket typically used by 802.15.4 radio modules. The RN42XVU-I/RM provides Bluetooth connectivity in legacy and existing designs that may have been based upon the 802.15.4 standard. This module is simple to design in and is fully certified, making it a complete embedded Bluetooth solution.
- .
- Fully qualified Bluetooth® version 2.1 Class 2
- .
- Backwards-compatible with Bluetooth version 2.0, 1.2, and 1.1
- .
- UART data connection interface
- .
- Supports secure simple pairing SPP
频率 2.4 GHz
电源电压DC 3.00V min
数据速率 3.00 Mbps
输出功率 2 dBm
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Through Hole
引脚数 20
封装 DIP-20
长度 29.9 mm
宽度 24.4 mm
高度 2 mm
封装 DIP-20
重量 5.5 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bag
制造应用 通信与网络, Sensing & Instrumentation, 传感与仪器, RF Communications, 射频通信, Wireless, Consumer Electronics, 消费电子产品, Communications & Networking, 无线
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 5A992.c
