R50RGB-5-0080概述

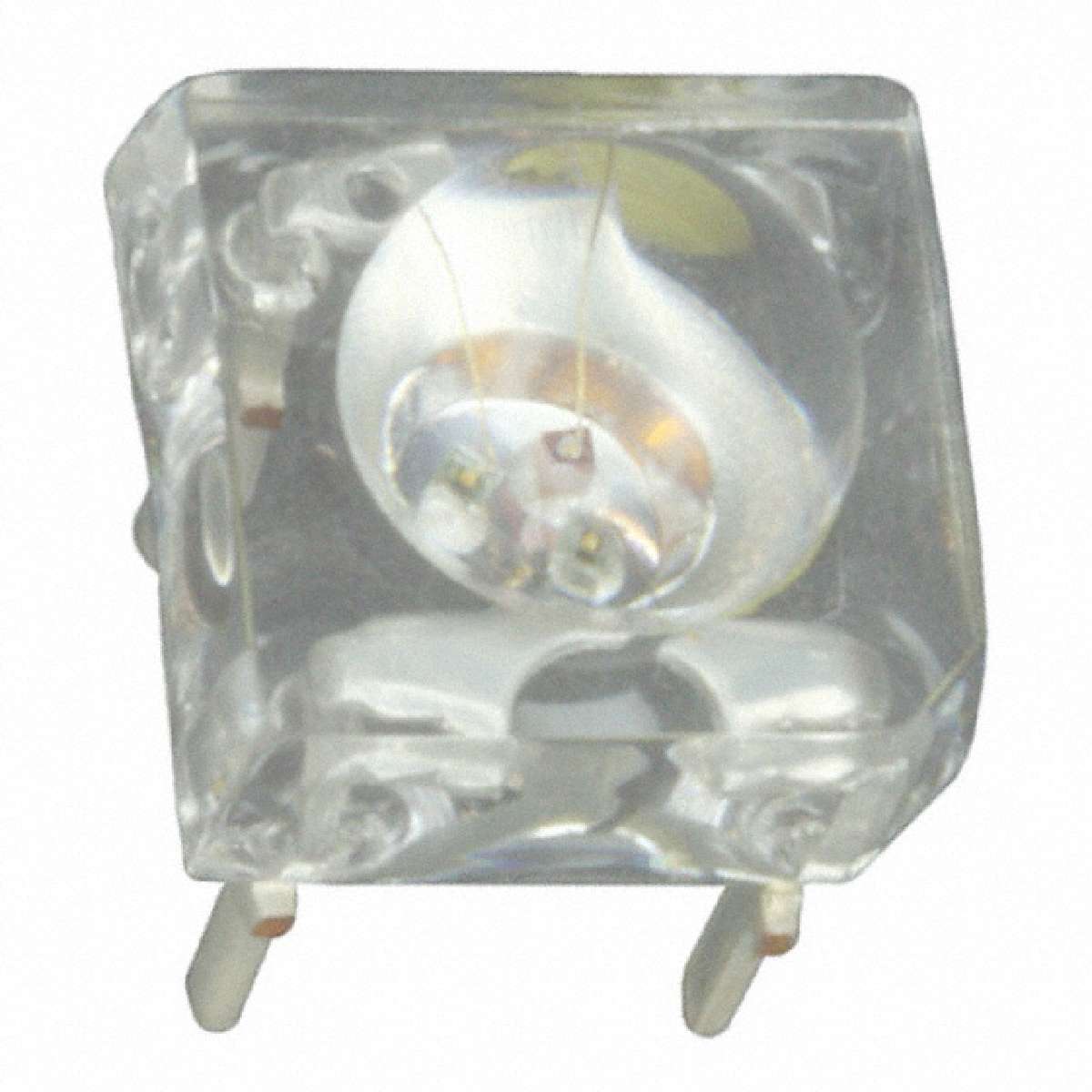

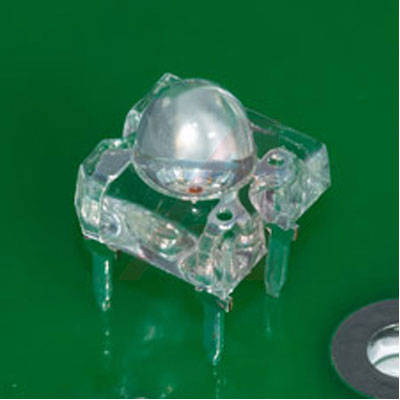

BIVAR R50RGB-5-0080 LED, RGB, Red, Green, Blue, Through Hole, 5mm, 80°, Dome, R 50mA, G 50mA, B 50mA

**PMR Series**

PMR series nylon housing rectangular panel mount indicators are press fit mounted. The PMR series has a long life expectancy and low power consumption that make them suitable for a variety of applications such as main and remote power indication, status indication and instrumentation.

R50RGB-5-0080中文资料参数规格
技术参数

正向电压 3.8 V

波长 630nm Red, 525nm Green, 470nm Blue

视角 80°

测试电流 50 mA

正向电流 80 mA

正向电流Max 80 mA

工作温度Max 80 ℃

工作温度Min -25 ℃

封装参数

安装方式 Through Hole

引脚数 4

封装 DIP-4

外形尺寸

高度 6.90 mm

封装 DIP-4

物理参数

颜色 Red, Green, Blue RGB

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2017/07/07

数据手册

在线购买R50RGB-5-0080
型号: R50RGB-5-0080
制造商: Bivar
描述:BIVAR R50RGB-5-0080 LED, RGB, Red, Green, Blue, Through Hole, 5mm, 80°, Dome, R 50mA, G 50mA, B 50mA
