RC2500HP-RC232

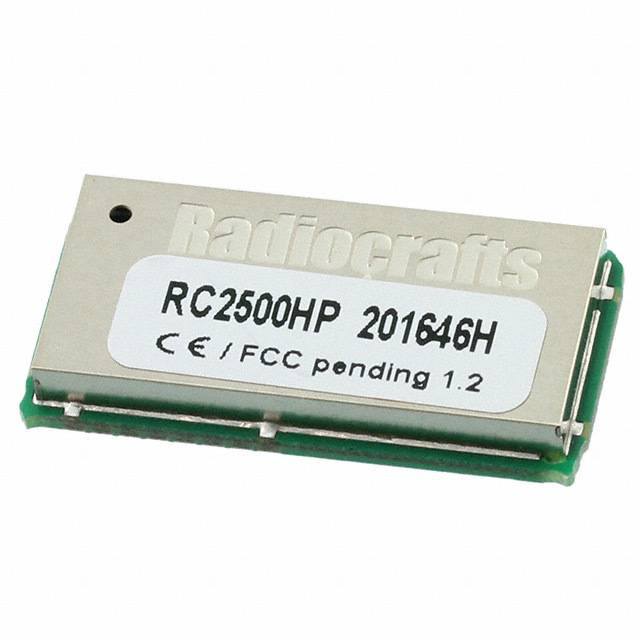

RF Transceiver GFSK/MSK 3.3V 30Pin SMD Module

The is a 2.45GHz high power multichannel RF transceiver module. It is a compact surface mounted module for multichannel GFSK/MSK operation in the 2.45GHz ISM band. The module is completely shielded and precertified for operation under the European radio regulations for license free use and complies with FCC US, WPC India and ARIB Japan regulations. The module contains a communication controller with embedded RC232 protocol software, a high performance RF transceiver, LNA and PA and an internal voltage regulator. This module offers a buffered packet radio in the RC232 embedded protocol. Using the buffered packet radio mode, all data to be sent is stored in the module before they are transmitted by the RF circuitry. The RF module can be set in SLEEP mode in order to reduce the power consumption.

.

Multichannel GFSK and MSK

.

Compact shielded module for SMD mounting

.

Embedded RF protocol RC232

.

Up to 1018byte data buffer

.

83 channels at 2.400GHz to 2.483GHz

.

Buffered mode

.

2.4KBd to 230.4KBd UART baud rate

.

1.2Kbit/s to 100Kb/s on air RF data rate

.

Wide supply voltage range from 2.7V to 3.6V

.

Small size 12.7mm x 25.4mm x 3.3mm

ESD sensitive device, take proper precaution while handling the device.

Noisy external circuitry may under certain scenarios affect the transmitted signal on RC2500-RC232 module so precaution should be taken during the operation.
