RB14-110F

RB14-110F图片1
RB14-110F图片2
RB14-110F图片3
RB14-110F概述

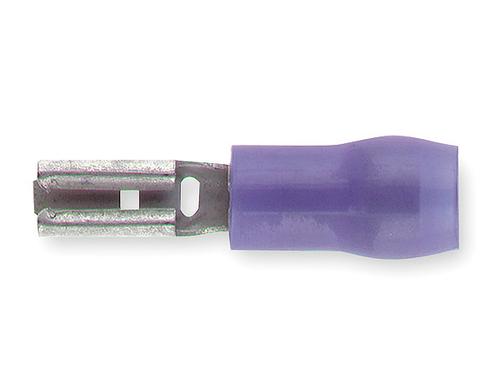

"Thomas & Betts RB14-110F Sta-Kon 110/RB Series Nylon Insulated Female Disconnect 600V, 16-14AWG, Blue, "

The Sta-Kon 110 series Disconnect Terminal provide a quick, reliable method of connection to terminal blocks and boards without the use of tools. They are supplied in a variety of styles to meet virtually all quick-disconnect requirements. It accommodate a range of 22 to 10AWG wire. It is available in non-insulated, partially insulated and fully insulated styles, in both nylon and vinyl. The brazed seam serrated barrel provides maximum tensile strength.


Newark:
Quick Disconnect Terminal, Sta-Kon 110 Series, Female Quick Disconnect, 2.8mm x 0.81mm


MASTER:
Quick Disconnect Terminal 14-16AWG Brass Blue F 19.05mm Tin


Electro Sonic:
Quick Disconnect Terminal 14-16AWG Brass Blue F 19.05mm Tin


RB14-110F中文资料参数规格
技术参数

极性 Female

触点电镀 Tin

易燃性等级 UL 94 V-2

封装参数

安装方式 Quick Connect

封装 100

外形尺寸

封装 100

物理参数

颜色 Blue

触点材质 Brass

材质 Brass

绝缘材质 Nylon

其他

产品生命周期 Active

制造应用 Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买RB14-110F
型号: RB14-110F
制造商: Thomas & Betts
描述:"Thomas & Betts RB14-110F Sta-Kon 110/RB Series Nylon Insulated Female Disconnect 600V, 16-14AWG, Blue, "
