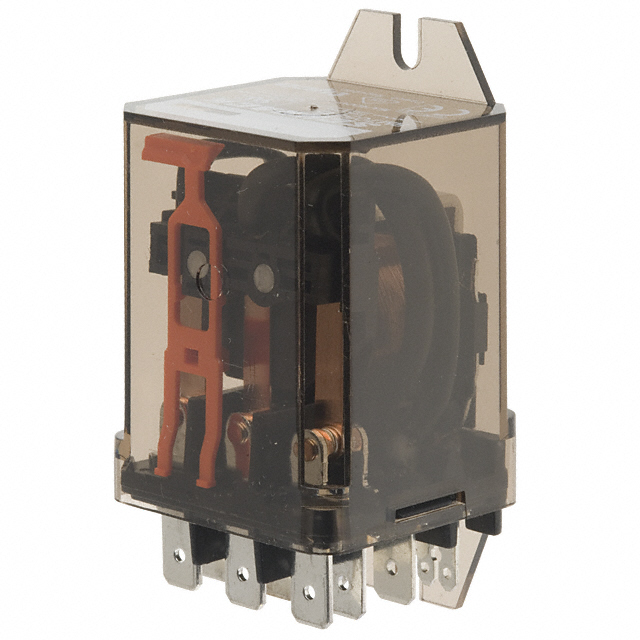

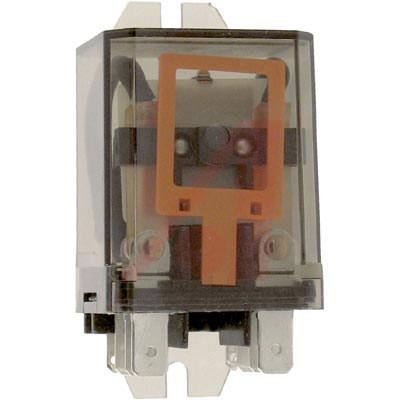

Power Relay 115VAC 25A DPDT 38.5mm 35.5mm 73.5mm Bracket Mount
General Purpose Relays
* Mechanical indicator
* Push-to-test-button
AgNi90/10 contact material.
艾睿:
Power Relay 115VAC 25A DPDT38.5x35.5x73.5mm Bracket
Allied Electronics:
Relay; 25 A; 115 VAC; General Purpose; Bracket Mounting; 6 to 220 VDC
安富利:
Electromechanical Relay DPDT 25A 115VAC 1.85KOhm Bracket Mount
Chip1Stop:
Electromechanical Relay DPDT 25A 115VAC 1.85KOhm Bracket Mount
Verical:
Power Relay 115VAC 25A DPDT38.5mm 35.5mm 73.5mm Bracket
MASTER:
Power Relay 115VAC 25A DPDT38.5x35.5x73.5mm Bracket
Online Components:
Power Relay 115VAC 25A DPDT38.5x35.5x73.5mm Bracket
Electro Sonic:
Power Relay 115VAC 25A DPDT38.5x35.5x73.5mm Bracket
额定电流 25 A
额定功率 1.19 W
触点类型 DPDT
输入电流 25.0 A
功耗 2.8 VA
跌落电压 34.5 V
触点额定电流 25 A
线圈电压 115 VAC
线圈电流 23 mA
线圈电压AC 115 V
线圈电阻 1.85 kΩ
载流 25.0 A
线圈功率AC 2.80 W
额定电流Max 25 A
额定功率Max 6 kVA
开关电流Max 25 A
工作温度Max 45 ℃
工作温度Min -45 ℃
额定电压 400 VAC
额定电压AC Max 400 V
安装方式 Bracket
封装 Tinted polycarbonate
长度 38.5 mm
宽度 35.5 mm
高度 73.5 mm
封装 Tinted polycarbonate
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 45℃
产品生命周期 End of Life
包装方式 Bulk
制造应用 Power Management, HVAC
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536410050
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RM805615 TE Connectivity 泰科 | 当前型号 | 当前型号 |
KUHP-11A51-120 泰科 | 功能相似 | RM805615和KUHP-11A51-120的区别 |
R55-11A20-120F NTE Electronics | 功能相似 | RM805615和R55-11A20-120F的区别 |
