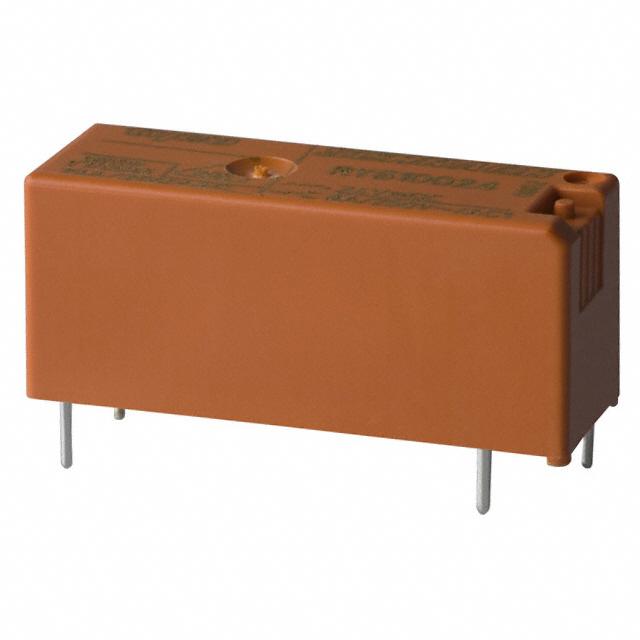

Power Relay 24VDC 8A SPDT28.5mm 10.1mm 12.3mm THT
Power Relay 24VDC 8A SPDT 28.5mm 10.1mm 12.3mm THT
Product Highlights
RYII Series
Contact Arrangement = 1 Form C, SPDT, 1 C/O
Contact Current Rating = 8 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
RELAY GEN PURPOSE SPDT 8A 24V
艾睿:
Power Relay 24VDC 8A SPDT28.5x10.1x12.3mm THT
Chip1Stop:
Electromechanical Relay SPDT 8A 24VDC 2.35KOhm Through Hole
Verical:
Power Relay 24VDC 8A SPDT28.5x10.1x12.3mm THT
MASTER:
Power Relay 24VDC 8A SPDT28.5mm 10.1mm 12.3mm THT
Online Components:
Power Relay 24VDC 8A SPDT 28.5mm 10.1mm 12.3mm THT
Electro Sonic:
Power Relay 24VDC 8A SPDT28.5mm 10.1mm 12.3mm THT
输入电压DC 24.0 V
跌落电压 2.40 V
触点额定电流 8.00 A
线圈电压 24 VDC
线圈电流 10.2 mA
线圈功率DC 220 mW
线圈电阻 2.35 KΩ
额定电流Max 8 A
线圈电压DC 24 V
线圈功率 245 mW
开关电流Max 8 a
工作温度Max 70 ℃
工作温度Min -40 ℃
安装方式 Through Hole
长度 28.5 mm
宽度 10.1 mm
高度 12.3 mm
触点材质 Silver Tin Oxide
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536490050
