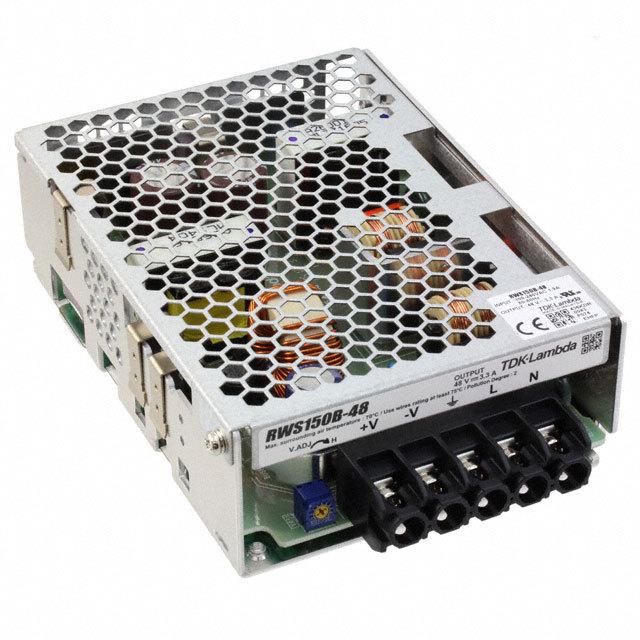

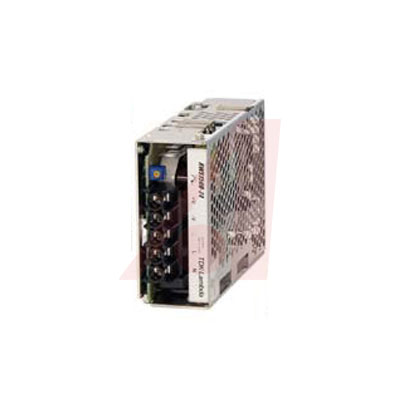

TDK LAMBDA RWS150B48 交流-直流转换器, 1路输出, 48V, 3.3A, 158.4W

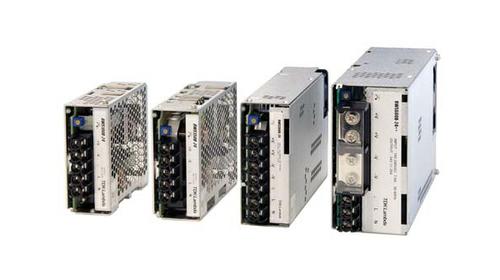

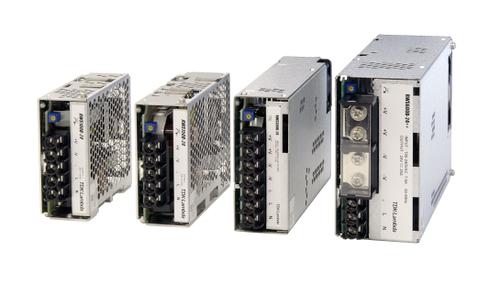

RWS-B Series 100W to 600W Single Output General Purpose Power Supplies
* Low Cost
* Wide Range AC Input 85-265 VAC 300 VAC for 5s
* UL508 Certification on Select Models
* Enclosed Construction
* Compact Size
* 5-Year Warranty
得捷:
AC/DC CONVERTER 48V 158W
e络盟:
TDK LAMBDA RWS150B48 交流-直流转换器, 1路输出, 48V, 3.3A, 158.4W
艾睿:
AC/DC Power Supply Single-OUT 48V 3.3A 158.4W
Allied Electronics:
Power Supply; AC-DC; 48V@3.3A; 85-265V In; Enclosed; Panel Mount; RWS-B Series
Verical:
AC/DC Power Supply Single-OUT 48V 3.3A 158.4W
额定功率 150 W
输出接口数 1
输入电压DC 120V ~ 370V
输出电压 48 V
输出电流 3.3 A
输出功率 158.4 W
隔离电压 3 kV
输入电压AC Max 265 v
输入电压AC Min 85 v
输出电流Max 3.3 A
输入电流Min 1.9 A
输出功率Max 158.4 W
工作温度Max 70 ℃
工作温度Min -10 ℃
输入电压 85VAC ~ 265VAC
高度 41 mm
工作温度 -10℃ ~ 70℃
产品生命周期 Active
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
