通用继电器 DPDT 2A 100VDC 5KOhm GEN PURPOSE RELAY
General Purpose Relay DPDT 2 Form C 24VDC Coil Through Hole
得捷:
RELAY GEN PURPOSE DPDT 3A 24V
立创商城:
24VDC 3A 无锁存
贸泽:
通用继电器 DPDT 2A 100VDC 5KOhm GEN PURPOSE RELAY
艾睿:
Electromechanical Relay 100VDC 5KOhm 3A DPDT 24.13mm 18.67mm 30.15mm THT General Purpose Relay
Chip1Stop:
Electromechanical Relay 100VDC 5KOhm 3A DPDT 24.13mm 18.67mm 30.15mm THT General Purpose Relay
Verical:
Electromechanical Relay 100VDC 5KOhm 3A DPDT 24.13x18.67x30.15mm THT General Purpose Relay
Newark:

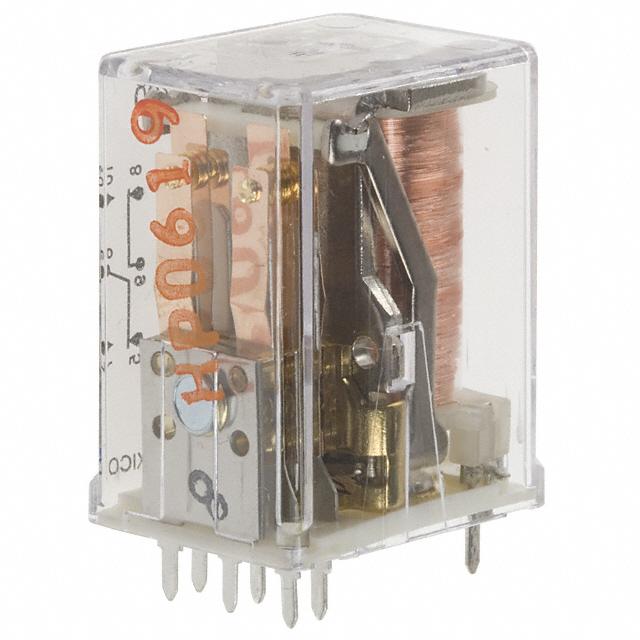

# POTTER&BRUMFIELD - TE CONNECTIVITY R10-E2Y2-J5.0K R10-E2Y2-J5.0K=R10
Electro Sonic:
Power Relay
额定电压DC 28 V
额定电压AC 120 V
触点类型 DPDT
功耗 85 mW
触点额定电流 3 A
线圈电压 24 VDC
线圈电流 20 mA
线圈功率DC 85.0 mW
线圈电阻 5 kΩ
额定电流Max 3 A
线圈电压DC 100 V
安装方式 Through Hole
引脚数 8
封装 -
长度 29.6 mm
宽度 18.7 mm
高度 30.15 mm
封装 -
触点材质 Silver
工作温度 -55℃ ~ 75℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Compliant
