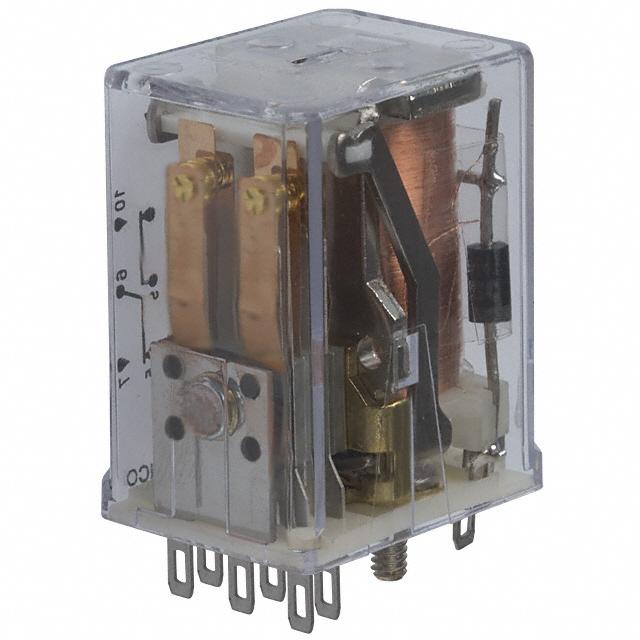

Electromechanical Relay 12VDC 2.5KΩ 3A DPDT 24.13mm 18.67mm 38.1mm Plug-In General Purpose Relay
Electromechanical Relay 12VDC 2.5KOhm 3A DPDT 24.13mm 18.67mm 38.1mm Plug-In General Purpose Relay
Product Highlights
R10 Series
Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 3 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
RELAY GEN PURPOSE DPDT 3A 12V
Chip1Stop:
Electromechanical Relay DPDT 3A 12VDC 2.5KOhm Plug-In
Verical:
Electromechanical Relay 12VDC 2.5KOhm 3A DPDT 24.13x18.67x38.1mm Plug-In General Purpose Relay
MASTER:
Power Relay
Online Components:
Electromechanical Relay 12VDC 2.5KOhm 3A DPDT 24.13mm 18.67mm 38.1mm Plug-In General Purpose Relay
Electro Sonic:
Power Relay
额定电压DC 28 V
额定电压AC 120 V
触点类型 DPDT
触点额定电流 3 A
线圈电压 12 VDC
线圈电流 4.8 mA
线圈功率DC 20.0 mW
线圈电阻 2.5 kΩ
载流 3.00 A
额定电流Max 3 A
线圈电压DC 12 V
额定电压DC Max 28 V
额定电压AC Max 120 V
安装方式 Plug In
引脚数 8
长度 24.13 mm
宽度 18.7 mm
高度 38.1 mm
触点材质 Silver
工作温度 -55℃ ~ 75℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410020
