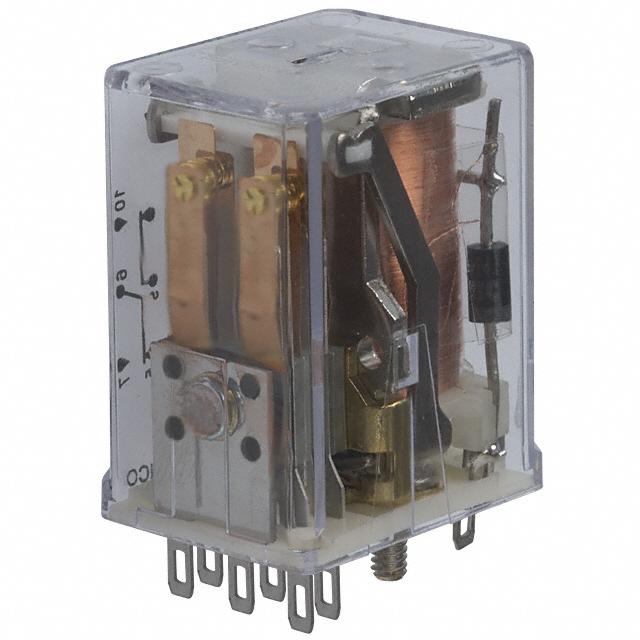

通用继电器 8PDT 5A 24VDC 350Ohm GEN PURPOSE RELAY
Electromechanical Relay 24VDC 350Ohm 5A 8PDT 40.13mm 18.67mm 30.15mm Plug-In General Purpose Relay
Product Highlights
R10 Series
Contact Arrangement = 8 Form C, 8PDT, 8 C/O
Contact Current Rating = 5 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
立创商城:
24VDC 5A 无锁存
得捷:
RELAY GEN PURPOSE 8PDT 5A 24V
贸泽:
通用继电器 8PDT 5A 24VDC 350Ohm GEN PURPOSE RELAY
Allied Electronics:
R10-E1X8-V350=R10, 2-1393766-7
Chip1Stop:
Electromechanical Relay 8PDT 5A 24VDC 350Ohm Plug-In
Verical:
Electromechanical Relay 24VDC 350Ohm 5A 8PDT 40.13mm 18.67mm 30.15mm Plug-In General Purpose Relay
MASTER:
Power Relay 24VDC 350Ohm 5A 8PDT40.13x18.67x30.15mm Plug-In General Purpose Relay
Online Components:
Electromechanical Relay 24VDC 350Ohm 5A 8PDT 40.13mm 18.67mm 30.15mm Plug-In General Purpose Relay
Electro Sonic:
Power Relay 24VDC 350Ohm 5A 8PDT40.13x18.67x30.15mm Plug-In General Purpose Relay
额定电压DC 30 V
额定电压AC 120 V
输入电压DC 24.0 V
功耗 1 W
触点额定电流 5 A
线圈电压 24 VDC
线圈电流 68.57 mA
线圈功率DC 1.00 W
线圈电阻 350 Ω
额定电流Max 5 A
线圈电压DC 24 V
线圈功率 1.7 W
额定电压DC Max 30 V
额定电压AC Max 120 V
安装方式 Plug In, Solder Lug
引脚数 26
封装 -
长度 29.6 mm
宽度 18.7 mm
高度 30.15 mm
封装 -
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 75℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536490075
