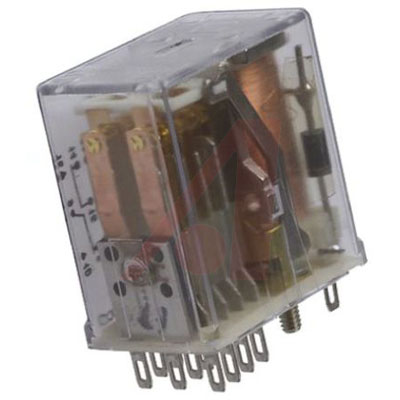

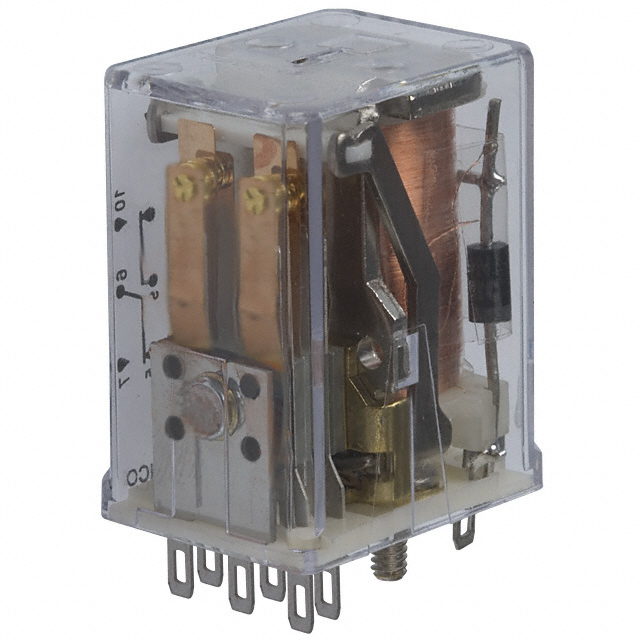

Electromechanical Relay 48VDC 2.5KΩ 5A 4PDT 29.59mm 18.67mm 30.15mm Plug-In General Purpose Relay
**R10 Series — General Purpose Dry Circuit to 7.5 Amp Multicontact AC or DC Relay
Features- .
- *
* Broad range of coil options provide sensitivity ranging from 25-750 mW
* Various contacts switch from dry circuit to 7.5 A
* Many mounting and termination options
艾睿:
Electromechanical Relay 48VDC 2.5KOhm 5A 4PDT29.59x18.67x30.15mm Plug-In General Purpose Relay
Allied Electronics:
Relay; E-Mech; Gen Purp; 4PDT; Cur-Rtg 5A; Ctrl-V 3-48VDC; Vol-Rtg 120/28AC/DC; 16 Pin
安富利:
Electromechanical Relay 4PDT 5A 48VDC 2.5KOhm Plug-In
Chip1Stop:
Electromechanical Relay 4PDT 5A 48VDC 2.5KOhm Plug-In
Verical:
Electromechanical Relay 48VDC 2.5KOhm 5A 4PDT 29.59x18.67x30.15mm Plug-In General Purpose Relay
MASTER:
Power Relay 48VDC 5A 4PDT29.6x18.7x30.2mm Socket
Online Components:
Electromechanical Relay 48VDC 2.5KOhm 5A 4PDT 29.59mm 18.67mm 30.15mm Plug-In General Purpose Relay
Electro Sonic:
Power Relay 48VDC 5A 4PDT29.6x18.7x30.2mm Socket
额定电压DC 30 V
额定电压AC 120 V
额定电流 5 A
输入电压DC 48.0 V
触点类型 4PDT
功耗 750 mW
触点额定电流 5 A
线圈电压 48 V
线圈电流 19.2 mA
线圈功率DC 500 mW
线圈电阻 2.5 KΩ
载流 5.00 A
额定电流Max 5 A
线圈电压DC 48 V
工作温度Max 75 ℃
工作温度Min -55 ℃
额定电压 240 VAC
额定电压DC Max 30 V
额定电压AC Max 120 V
安装方式 Solder
引脚数 14
长度 29.6 mm
宽度 18.7 mm
高度 30.15 mm
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 75℃
产品生命周期 Active
包装方式 Tray, Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410020
