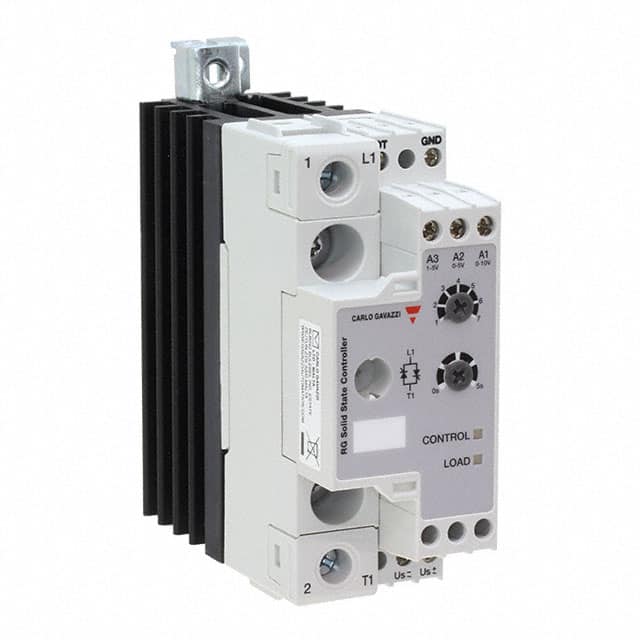

RGC1P23V30ED

Relay SSR 10mA 10V DC-IN 30A 265V AC-OUT 9Pin

** RGC Series - 1-Phase Integrated Heatsink Solid Sate Contactor Relays:**

This new range of solid state contactors presents a unique opportunity to maximize efficiency in panel space and is an evolution of solid state switches for which Carlo Gavazzi is very well known. The nominal current ratings are at 40°C. The smallest width is 17.5mm and is rated at 20 AAC. Power and control teminals allow for safe looping of cables.

**Features:**

* Product Width ranging from 17.5mm up to 70mm

* Rated Operational voltage: Up to 600VAC

* Rated Operational current: Up to 85AAC @ 40°C

* Up to 18000A2s for I2t and 1200Vp blocking voltage

* Control voltages: 3-32 VDC, 20-275 VAC 24-190 VDC

* IP20 protection

* Design according to EN/IEC60947-4-2, EN/IEC60947-4-3, EN/IEC62314, UL508, CSA 22-2 No. 14-10

* Integrated voltage transient protection with varistor

* RoHS compliant

* Short circuit current rating: 100kA

* VDE approval

* Germanischer Lloyd approval
