TE CONNECTIVITY RN73C2A6K98BTDF 片式电阻器, 表面贴装, 薄膜, RN73系列, 6.98 kohm, 100 V, 0805 [2012公制], 100 mW, ± 0.1%

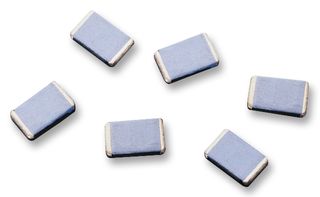

This is a fixed single surface-mount resistor from . This product has a resistance value of 6.98K Ohm. This durable part has a power rating of 0.1 1/10 W. Its temperature coefficient is ±10 ppm/°C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 2 mm long, 0.55 mm tall and 1.25 mm deep. This device is made with thin film technology. This part has an operating temperature of -55 to 155 °C.
额定电压DC 100 V
容差 ±0.1 %
额定功率 100 mW
产品系列 RN73
电阻 6.98 kΩ
阻值偏差 ±0.1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Surface Mount
引脚数 2

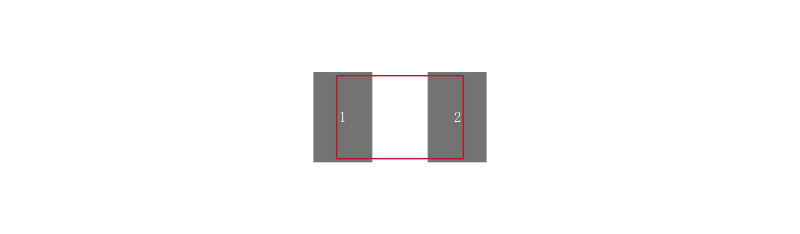

封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.55 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 155℃
温度系数 ±10 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RN73C2A6K98BTDF TE Connectivity 泰科 | 当前型号 | 当前型号 |
RN73C2A6K98BTG 泰科 | 类似代替 | RN73C2A6K98BTDF和RN73C2A6K98BTG的区别 |
1676419-5 泰科 | 类似代替 | RN73C2A6K98BTDF和1676419-5的区别 |
MCTC0525B1653T5G Multicomp | 类似代替 | RN73C2A6K98BTDF和MCTC0525B1653T5G的区别 |
