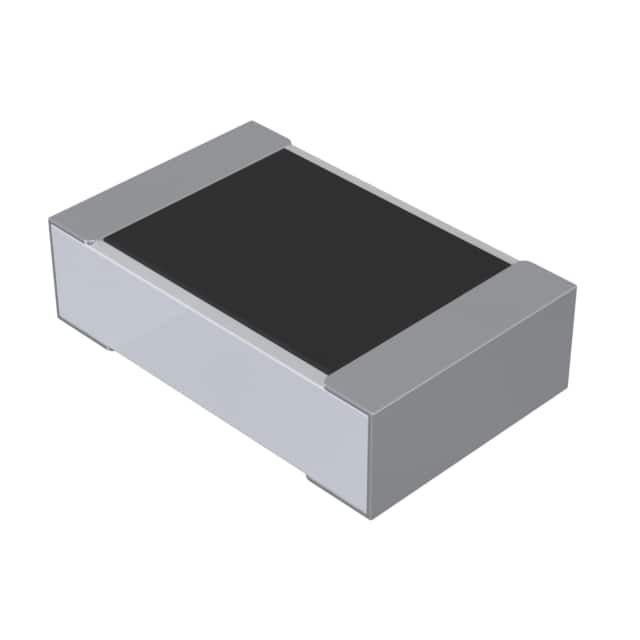

TE CONNECTIVITY RN73C2A30R9BTG SMD Chip Resistor, Thin Film, 30.9Ω, 100V, 0805 [2012 Metric], 0.1W1/10W, ± 0.1%, RN73 Series
The RN73 Series is a high stability precision chip resistor range offering various power dissipations relating to chip size, TCR"s down to 5 ppm/°C and resistive tolerances to 0.01%. The resistor is produced with three sputtered layers giving optimum performance. Values are restricted to the E96 and E24 value grids. The RN73 has accurate and uniform physical dimensions to facilitate placement.
**Features:**
* High Precision — TCR 5 ppm/°C and 10 ppm/°C
* Tolerance Down to 0.01%
* Thin Film Nichrome
* Choice of Packages
* Stable High Frequency Performance
* Temperature Range –55°C to +125°C
额定电压DC 100 V
容差 ±0.1 %
额定功率 0.1 W
产品系列 RN73
电阻 30.9 Ω
阻值偏差 ±0.1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.55 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 155℃
温度系数 ±10 ppm/℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 250
RoHS标准 RoHS Compliant
含铅标准 无铅
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RN73C2A30R9BTG TE Connectivity 泰科 | 当前型号 | 当前型号 |
RN73C2A30R9BTDF 泰科 | 类似代替 | RN73C2A30R9BTG和RN73C2A30R9BTDF的区别 |
MCTC0525B309JT5E Multicomp | 功能相似 | RN73C2A30R9BTG和MCTC0525B309JT5E的区别 |
