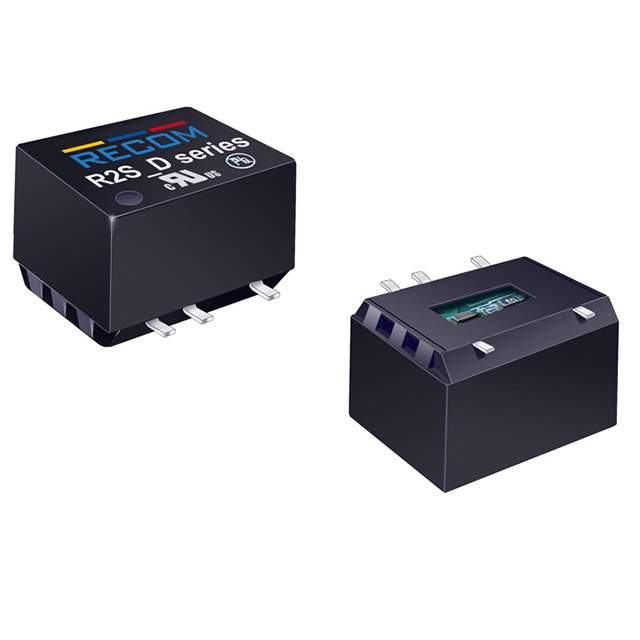

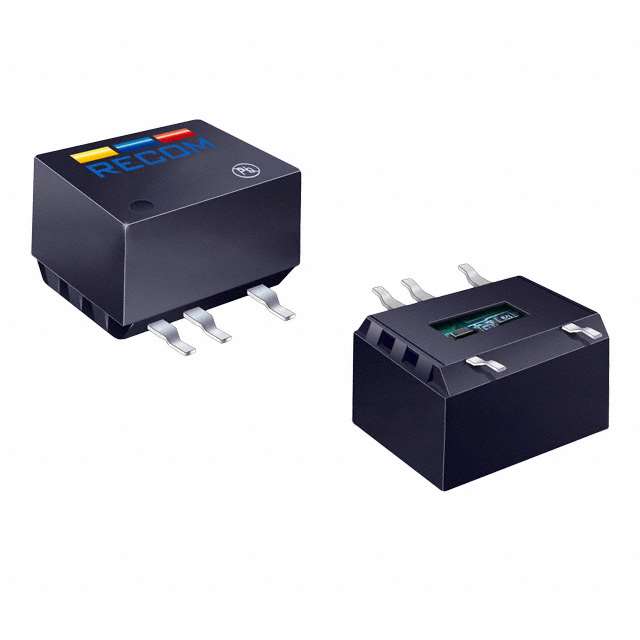

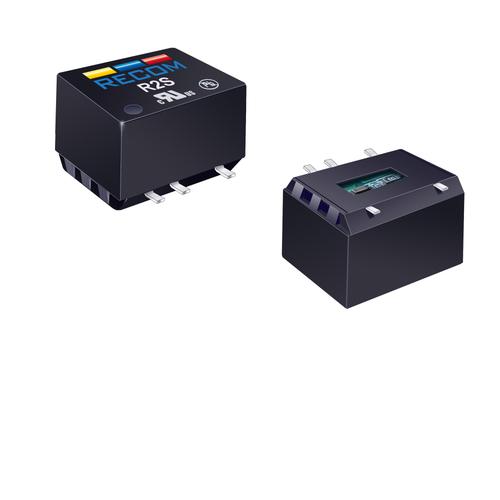

RECOM POWER R2S-1212 直流/直流转换器 隔离式板载, Econoline, 表面安装DIP, 固定, 表面安装设备, 2 W, 12 V, 167 mA
The is an ECONOLINE DC/DC Regulated Converter with enclosed open frame type, meaning that it is un-potted. The converter is typically used in general purpose and industrial low power isolation and voltage matching applications where an SMD converter is required. The converter features an extended ambient temperature operating range of -40 to 100°C without derating and continuous short-circuit protection.
- .
- Suitable for fully automated assembly including vapor phase soldering
- .
- Built-in EN55022 class-A filter
- .
- 76 to 85% Efficiency
- .
- 680µF Maximum capacitive load
额定功率 2 W
输出接口数 1
输入电压DC 12.0 V
输出电压 12 V
输出电流 0.167 A
输出功率 2 W
隔离电压 1 kV
开关频率 85 kHz
输入电压Max 13.2 V
输入电压Min 10.8 V
输入电压DC Max 13.2 V
输入电压DC Min 10.8 v
输出电流Max 167 mA
输出功率Max 2 W
工作温度Max 100 ℃
工作温度Min -40 ℃
输入电压 12 V
安装方式 Surface Mount
引脚数 5
封装 SMD-8
长度 15.24 mm
宽度 10.7 mm
高度 8.7 mm
封装 SMD-8
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tube
制造应用 信号处理, ITE（商业）, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
R2S-1212 RECOM Power | 当前型号 | 当前型号 |
R2S-1212-R RECOM Power | 完全替代 | R2S-1212和R2S-1212-R的区别 |
RTS-1212 RECOM Power | 类似代替 | R2S-1212和RTS-1212的区别 |
