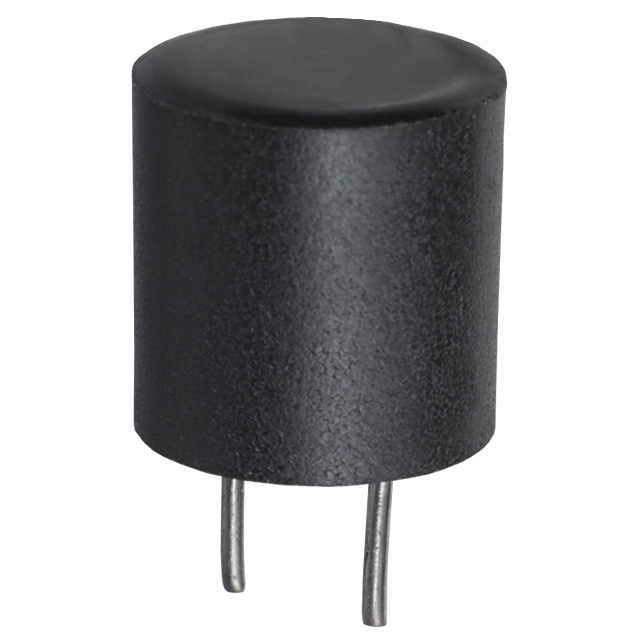

BOURNS JW MILLER RL181S-183J-RC 射频扼流圈, 18000uH, 5%, 径向引线
18 mH 屏蔽 Drum Core,Wirewound 器 21 mA 17 欧姆最大 径向,垂直圆柱
得捷:
FIXED IND 18MH 21MA 17 OHM TH
贸泽:
Fixed Inductors 18,000 uH 21mA
e络盟:
射频扼流圈, 18000uH, 5%, 径向引线
艾睿:
Jump-start your electrical design by including this rf choke RL181S-183J-RC leaded inductor from Bourns. This part has a pitch of 5 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 190KTyp Hz. It has a tolerance of 5%. It has an inductance of 18m H. This product is 14 mm tall with a diameter of 10.5 mm. This device is made with wirewound technology. This leaded inductor has a maximum DC current of 21m A with a maximum resistance of 17 Ohm.
安富利:
Ind RF Choke Shielded 18mH 5% 1KHz 100Q-Factor 21mA RDL Bag
Verical:
RF Choke Shielded Wirewound 18000uH 5% 1KHz 100Q-Factor 0.021A 17Ohm DCR RDL Bag
Newark:
# BOURNS JW MILLER RL181S-183J-RC RF Choke, Radial Lead, RL181S Series, 18 mH, 21 mA, 17 ohm, ± 5%, 190 kHz
MASTER:
RF Choke Shielded Wirewound 18mH 5% 1KHz 100Q-Factor 21mA 17Ohm DCR RDL Bag
Online Components:
RF Choke Shielded Wirewound 18mH 5% 1KHz 100Q-Factor 21mA 17Ohm DCR RDL Bag
Electro Sonic:
RF Choke Shielded Wirewound 18mH 5% 1KHz 100Q-Factor 21mA 17Ohm DCR RDL Bag
额定电流 21 mA
容差 ±5 %
电感 18 mH
自谐频率 0.19 MHz
屏蔽 Yes
电感公差 ±5 %
测试频率 1 kHz
电阻DC) ≤17 Ω
额定电流DC 21 mA
工作温度Max 105 ℃
工作温度Min -55 ℃
电阻DC Max 17 Ω
安装方式 Through Hole
引脚数 2
长度 14 mm
宽度 10.5 mm
高度 14 mm
脚长度 5.00 mm
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bag
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
