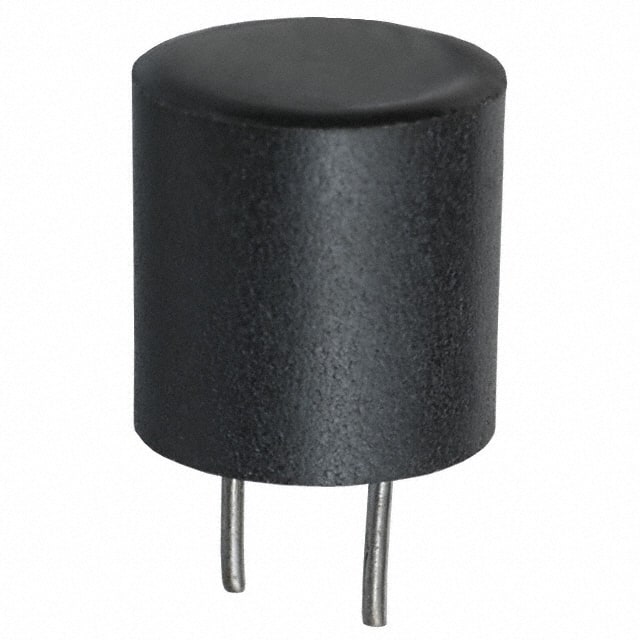

径向引线RF扼流圈 Radial Lead RF Choke
2.2mH Shielded Wirewound Inductor 60mA 5.2Ohm Max Radial, Vertical Cylinder
得捷:
FIXED IND 2.2MH 60MA 5.2 OHM TH
立创商城:
2.2mH ±5% 60mA 5.2Ω
艾睿:
Jump-start your electrical design by including this rf choke RL181S-222J-RC leaded inductor from Bourns. This part has a pitch of 5 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. It has a tolerance of 5%. It has an inductance of 2.2m H. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 510KTyp Hz. This leaded inductor has a maximum DC current of 60m A with a maximum resistance of 5.2 Ohm. This product is 14 mm tall with a diameter of 10.5 mm. This device is made with wirewound technology.
安富利:
Ind RF Choke Shielded 2.2mH 5% 1KHz 70Q-Factor 60mA RDL Bag
Chip1Stop:
RF Choke Shielded Wirewound 2.2mH 5% 1KHz 70Q-Factor 60mA 5.2Ohm DCR RDL Bag
Verical:
RF Choke Shielded Wirewound 2.2mH 5% 1KHz 70Q-Factor 60mA 5.2Ohm DCR RDL Bag
Electro Sonic:
RF Choke Shielded Wirewound 2.2mH 5% 1KHz 70Q-Factor 60mA 5.2Ohm DCR RDL Bag
