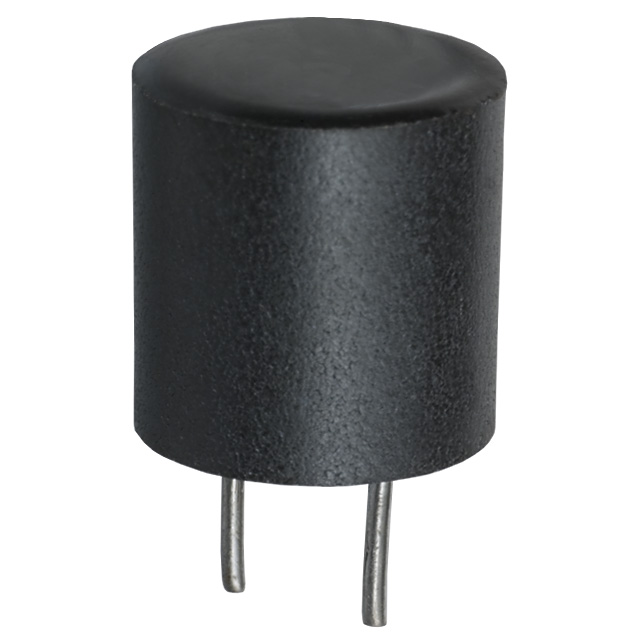

RL181S-393J-RC

BOURNS JW MILLER  RL181S-393J-RC  射频扼流圈, 39000uH, 5%, 径向引线

RF Choke Shielded Wirewound 39mH 5% 1KHz 100Q-Factor 15mA 45Ohm DCR RDL Bag

立创商城:
39mH ±5% 15mA 45Ω

得捷:
FIXED IND 39MH 15MA 45 OHM TH

e络盟:
射频扼流圈, 39000uH, 5%, 径向引线

艾睿:
This rf choke RL181S-393J-RC leaded inductor from Bourns is available for both power applications and RF applications. This part has a pitch of 5 mm. This leaded inductor has an operating temperature range of -55 °C to 105 °C. This leaded inductor has a maximum DC current of 15m A with a maximum resistance of 45 Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 120KTyp Hz. It has an inductance of 39m H. It has a tolerance of 5%. This product is 14 mm tall with a diameter of 10.5 mm. This device utilizes wirewound technology.

Verical:
RF Choke Shielded Wirewound 39000uH 5% 1KHz 100Q-Factor 0.015A 45Ohm DCR RDL Bag

Newark:
# BOURNS JW MILLER  RL181S-393J-RC  RF Choke, Radial Lead, RL181S Series, 39 mH, 15 mA, 45 ohm, ± 5%, 120 kHz

MASTER:
RF Choke Shielded Wirewound 39mH 5% 1KHz 100Q-Factor 15mA 45Ohm DCR RDL Bag

Online Components:
RF Choke Shielded Wirewound 39mH 5% 1KHz 100Q-Factor 15mA 45Ohm DCR RDL Bag

Electro Sonic:
RF Choke Shielded Wirewound 39mH 5% 1KHz 100Q-Factor 15mA 45Ohm DCR RDL Bag
