RJHSE-5380概述

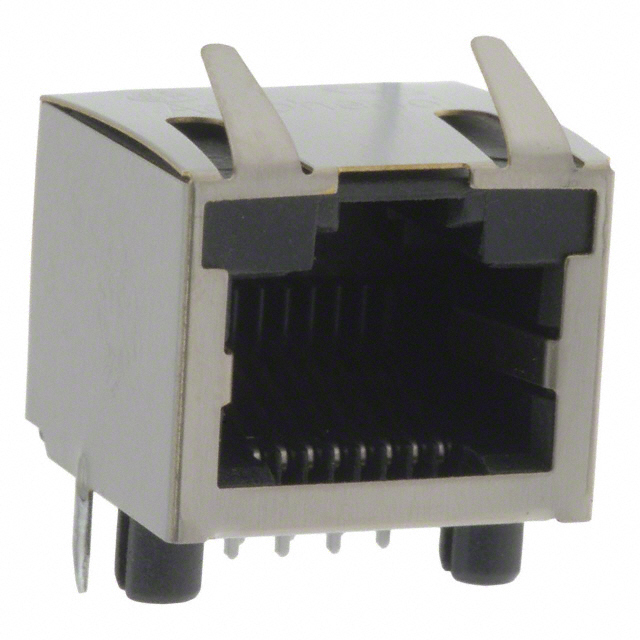

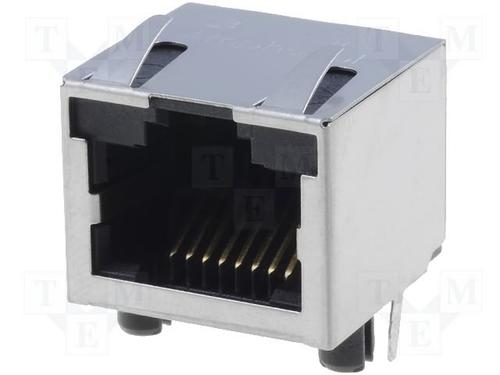

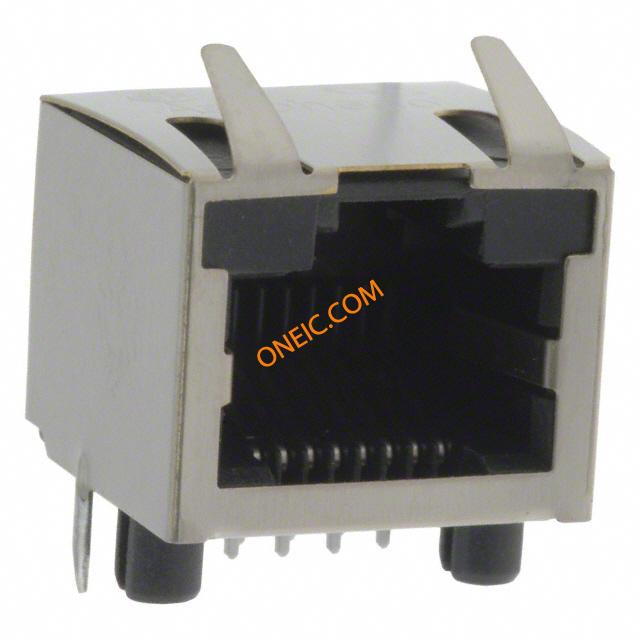

AMPHENOL  RJHSE-5380.  模块连接器, Cat5, RJ45, 插座, 8 触点, 8 路

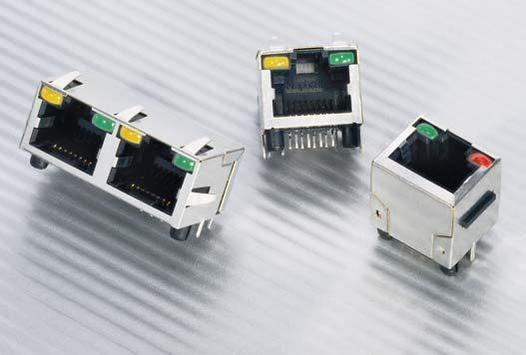

The is a CAT-5 8P8C/RJ45 EMI Quiet Modular Jack with built-in LEDs, high temperature engineering thermoplastic insulator and right angle, 8-position, 50µinch gold-plated phosphor bronze hard temper contacts. The modular jack features stainless steel with tin dipped tails shield, shield with top tabs. This product is ideal for LAN applications such as adapter cards and routers.

.
Tin-plated LED tails
.
20mR Maximum contact resistance
.
500MR at 500VDC for 2 minutes Maximum insulation resistance
.
1.5A Current rating
.
125VAC Voltage rating
.
1000VAC/minute at 60Hz DMV
.
Blocked LED-2 left and LED-1 right
.
-55 to + 85°C Operating temperature
RJHSE-5380中文资料参数规格
技术参数

触点数 8

极性 Male

触点电镀 Gold

额定电压DC 125 V

额定电流 1.5 A

绝缘电阻 500 MΩ

排数 1

方向 Right Angle

易燃性等级 UL 94 V-0

针脚数 8

拔插次数 750

屏蔽 Yes

额定电流Max 1.5A/触头

工作温度Max 85 ℃

工作温度Min -55 ℃

额定电压Max 125 VAC

额定电压 125 V

接触电阻Max 20 mΩ

封装参数

安装方式 Through Hole

封装 throughHole

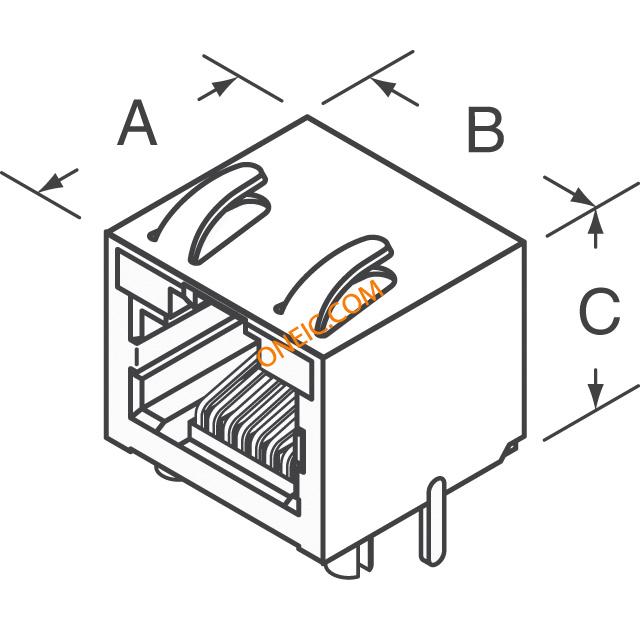

外形尺寸

长度 16.51 mm

宽度 15.75 mm

高度 13.46 mm

封装 throughHole

物理参数

外壳颜色 Black

颜色 Black

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tray

制造应用 计算机和计算机周边, 通信与网络, Industrial, Computers & Computer Peripherals, 工业, Communications & Networking

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

海关信息

ECCN代码 EAR99

数据手册

RJHSE-5380引脚图与封装图
RJHSE-5380引脚图
RJHSE-5380封装焊盘图
