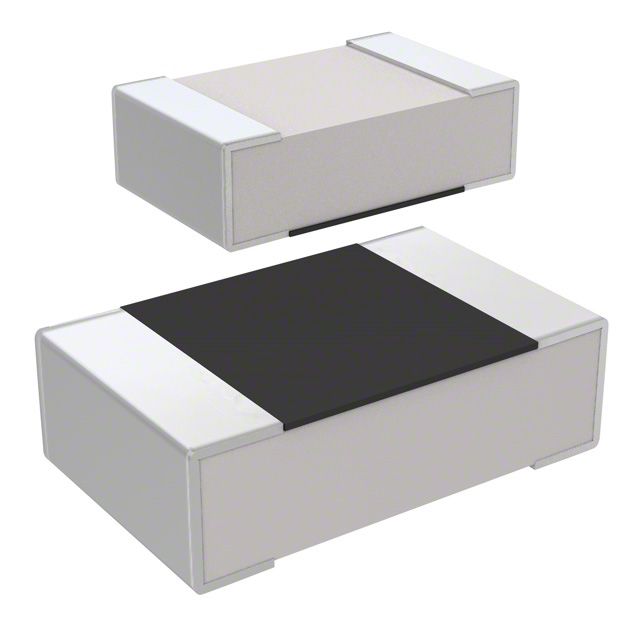

RC2012J000CS图片1
RC2012J000CS图片2
RC2012J000CS图片3
RC2012J000CS图片4
RC2012J000CS图片5
RC2012J000CS概述

SMD电阻器/芯片电阻器

SMD器/芯片电阻器


得捷:
RES SMD 0 OHM JUMPER 1/8W 0805


艾睿:
This is a RC2012J000CS fixed single surface-mount resistor from Samsung Electro-Mechanics. This product has a resistance value of 0 Ohm. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 2 mm long, 0.55 mm tall and 1.25 mm deep. This device is made with thick film technology. This part has an operating temperature of -55 to 155 °C.


安富利:
Res Thick Film 0805 0 Ohm Molded SMD SMD T/R


立创商城:
0Ω 125mW


Verical:
Res Thick Film 0805 0 Ohm Molded SMD T/R


RC2012J000CS中文资料参数规格
技术参数

额定电压DC 150 V

额定功率 0.125 W

产品系列 RC

电阻 0 Ω

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 2012

封装 0805

外形尺寸

长度 2 mm

宽度 1.25 mm

高度 0.55 mm

封装公制 2012

封装 0805

物理参数

工作温度 -55℃ ~ 155℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

RC2012J000CS引脚图与封装图

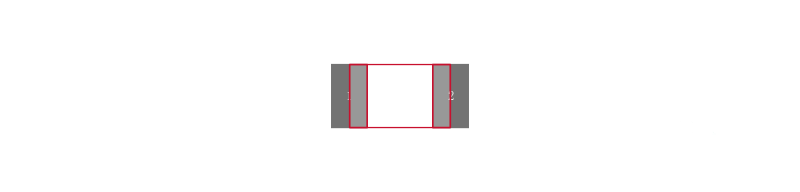

RC2012J000CS引脚图

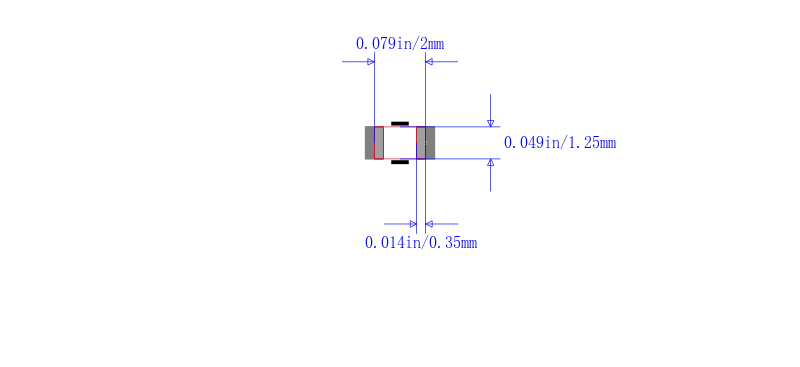

RC2012J000CS封装图
RC2012J000CS封装焊盘图
在线购买RC2012J000CS
型号: RC2012J000CS
制造商: Samsung 三星
描述:SMD电阻器/芯片电阻器
替代型号RC2012J000CS
型号/品牌 代替类型 替代型号对比

RC2012J000CS

Samsung 三星

当前型号

当前型号

CR0805-J/-000ELF

伯恩斯

功能相似

RC2012J000CS和CR0805-J/-000ELF的区别

CRG0805ZR

泰科

功能相似

RC2012J000CS和CRG0805ZR的区别

WCR0805-R005JI

TT Electronics/Welwyn

功能相似

RC2012J000CS和WCR0805-R005JI的区别
