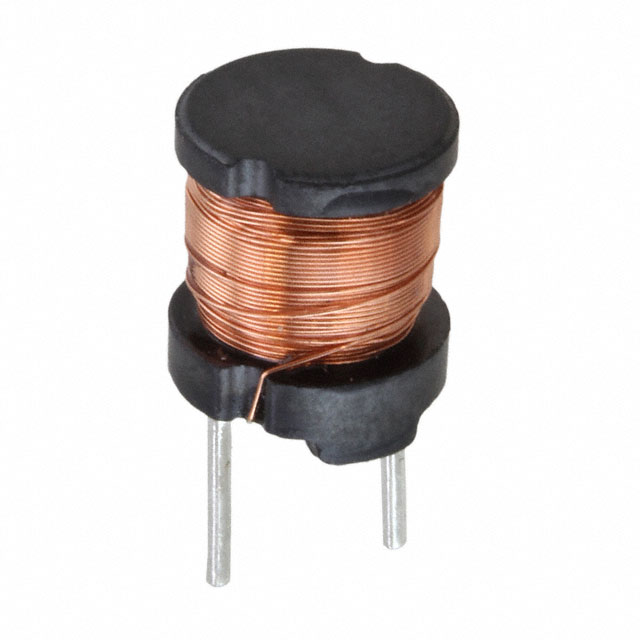

RCH895NP-822K

Inductor Power Unshielded Drum Core 8.2mH 10% 1kHz Ferrite 75mA 15.3Ω DCR RDL Box

This power leaded inductor from Corporation resists changes in electric current passing through it. This part has a pitch of 5 mm. This leaded inductor has an operating temperature range of -40 °C to 100 °C. It has a tolerance of 10%. This device utilizes drum core technology. It has an inductance of 8.2m H. Its test frequency is 1K Hz. This leaded inductor has a maximum DC current of 75m A with a maximum resistance of 15.3 Ohm. This product is 9.5 mm tall with a diameter of 8.3 mm.
