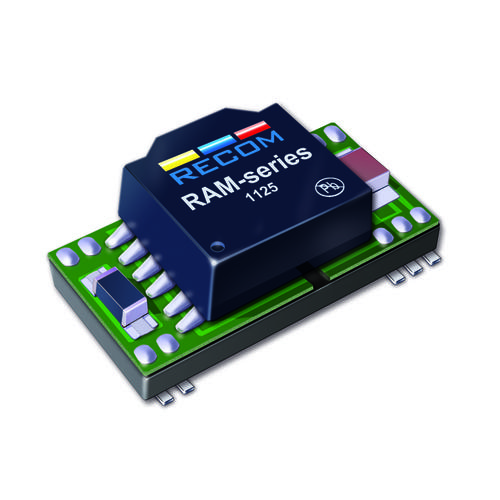

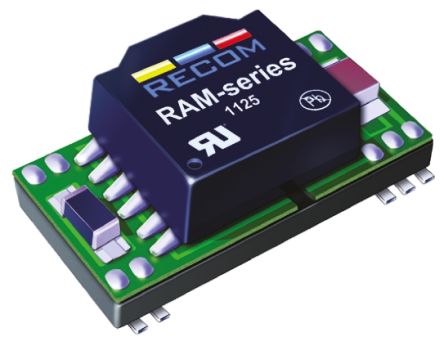

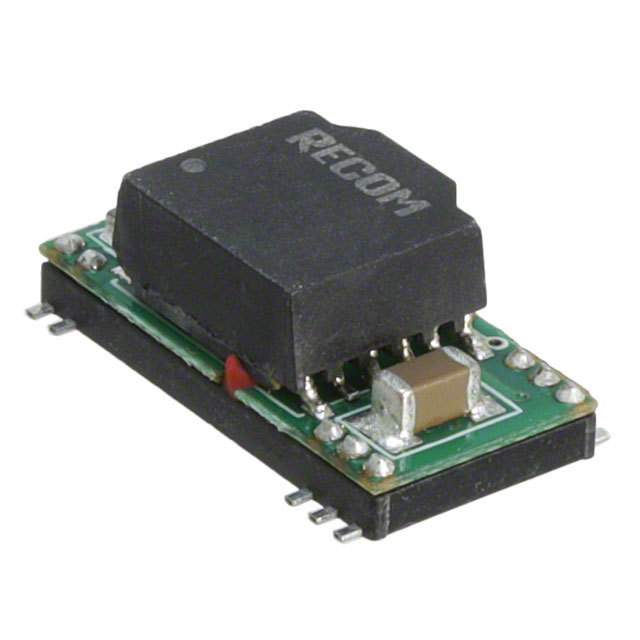

RECOM POWER RAM-0505S 直流/直流转换器 隔离式板载, Econoline, 表面安装DIP, 固定, 表面安装设备, 1 W, 5 V, 200 mA
Recom ECONOLINE 1W SMD Unregulated Medical Isolated DC/DC Converter - RAM Series
ECONOLINE RAM series 1W SMD unregulated, isolated, single output DC/DC converters with a 1.1 input range and EN60601-1 medical approval. These SMD unregulated medical DC/DC converters have an extended operating temperature range of -40 to +100°C without derating and 3kVDC isolation.
1:1 input voltage range
EN60601-1 approved for medical applications
Up to 80% efficiency
3kVDC isolation
-40 to +100°C operating temperature range without derating
Continuous short circuit protection
### 注
MTBF: MIL-HDBK 217F 25%
For EMC compliance please see datasheet
### 标准
EN-60601-1, UL-60950-1
额定功率 1 W
输出接口数 1
输出电压 5 VDC
输出电流 200 mA
输出功率 1 W
隔离电压 3 kV
开关频率 90 kHz
输入电压Max 5.5 V
输入电压Min 4.5 V
输入电压DC Max 5.5 V
输入电压DC Min 4.5 v
输出电流Max 200 mA
输出功率Max 1 W
工作温度Max 100 ℃
工作温度Min -40 ℃
输入电压 4.5VDC ~ 5.5VDC
安装方式 Surface Mount
引脚数 10
封装 SMD
长度 18 mm
宽度 9 mm
高度 6.7 mm
封装 SMD
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
