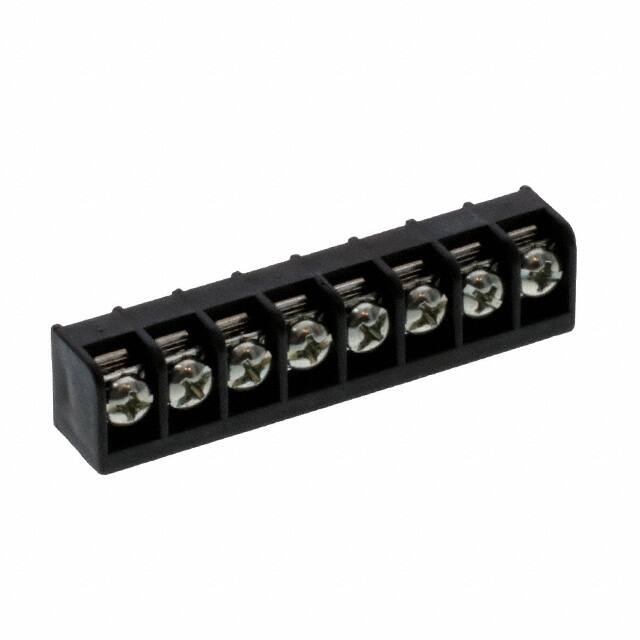

Conn Barrier Strip 8POS 8.26mm Solder ST Thru-Hole 15A/Contact
8 Circuit 0.325" 8.26mm Barrier Block Connector, Screws with Captive Plate
得捷:
CONN BARRIER STRIP 8CIRC 0.325"
艾睿:
Conn Barrier Strip 8 POS 8.26mm Solder ST Thru-Hole 15A/Contact
安富利:
Conn Barrier Strip 8 POS 8.26mm Solder ST Thru-Hole 15A/Contact
Verical:
Conn Barrier Strip 8 POS 8.26mm Solder ST Thru-Hole 15A/Contact
MASTER:
Conn Barrier Strip 8 POS 8.26mm Solder ST Thru-Hole 15A/Contact
Electro Sonic:
Conn Barrier Strip 8 POS 8.26mm Solder ST Thru-Hole 15A/Contact
触点数 8
线规 14AWG ~ 26AWG
排数 1
电路数 8
易燃性等级 UL 94 V-2
额定电流Max 15A/触头
工作温度Max 105 ℃
工作温度Min -60 ℃
额定电压Max 300 V
额定电压 300 V
工作电压Max 300 V
安装方式 Through Hole
高度 12.7 mm
外壳颜色 Black
颜色 Black
触点材质 Brass, Steel
工作温度 -60℃ ~ 105℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
