Straight sealed N plugs for panel mountingStraight female N plugs with cable gland for panel mounting with nut. The screw coupling on this connector ensures good HF performance. High permissible power. Impedance: | 50 Ω ---|--- Recommended operating frequency: | 0 → 11 GHz R.O.S.: | 1.3 max. Insertion losses: | 0.15 dB/m at 10 GHz H.F. leakages: | –90 dB min. 2 → 3 GHz Insulation resistance: | Min. 5000 MΩ Max. service voltage: | 850 V eff. on the ground Endurance: | 500 operations Operating temperature: | –55 °C → +155 °C Material - body: | BBR brass | \- main contact: gold-plated beryllium-bronze | -insulation: PTFE ref. | Ø mm | Stock | ---|---|---|--- Radiall | cable | no. | cable **Front mounting** | | | R 161 321 | 2.6 | 295-6848 | RG 174A/U; RG 188 A/U **Rear mounting** | | | R 161 322 | 2.6 | 295-6854 | RG 174A/U; RG 188 A/U R 161 325 | 5 | 295-6860 | RG 58 C/U; RG 141 A/U; RG 142 B/U R 161 332 | 10 / 11 | 295-6876 | RG 62 B/U; RG 213/U; RG 214/U ### RadiallBBR Bronze Blanc Radiall，镀白青铜 50Ω N 连接器，满足高频率通信应用的可靠低损耗性能要求。 低互调 非磁性和防腐蚀 防刮擦与耐磨性 频率范围 | 直流到 11GHz | ---|---|--- VSWR（典型） | 1GHz | 5GHz 直向 RG58 | 1.05 | 1.1 直向 RG213/214 | 1.04 | 1.09 90° RG58 | 1.04 | 1018 90° RG213/214 | 1.04 | 1.2 绝缘电阻（最小） | 5000MΩ | 中心触点电阻（最大） | 1.5mΩ | **工作电压** | | RG58 | 850V 交流 | RG213/214 | 1400V 交流 | **耐电压** | | RG58 | 1500V 交流 | RG213/214 | 2500V 交流 | **材料** | | 主体 | 黄铜 | **触点** | 1GHz | 公 | 黄铜 | 母 | 铍铜 | 绝缘体 | PTFE | **电镀** | | 主体 | 白青铜 | 触点 | 金 | 压接工具 --- **电缆类型** | **电缆组** | **使用压接工具** RG58 | A | 456-431, 453-870 RG213 | T | 405-304 RG214 | W | 405-304
Straight sealed N plugs for panel mounting

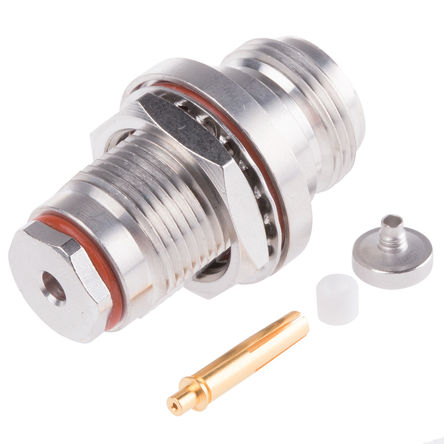

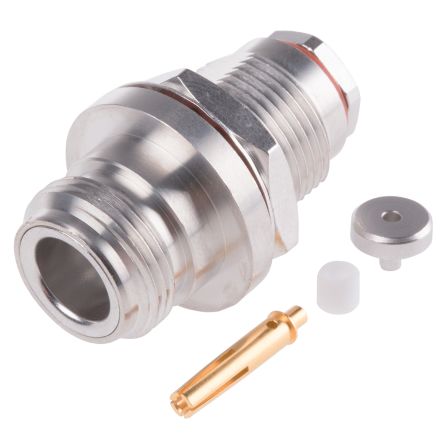

Straight female N plugs with cable gland for panel mounting with nut.
The screw coupling on this connector ensures good HF performance.
High permissible power.
###
