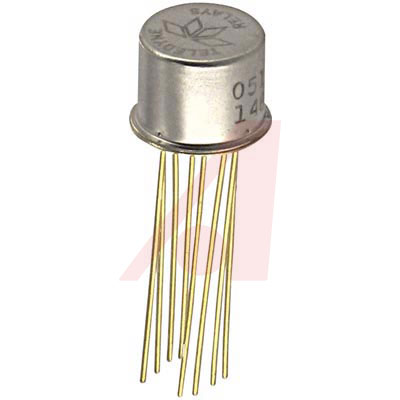

Electromechanical Relay 12VDC 390Ω 1A DPDT 9.4x9.4x6.99mm THT High Reliability Relay
DPDT Contact Form, 0.4 pF Typ. Capacitance, RF Series High Repeatability Broadband TO-5 Relays
RF300 and RF303 Series DPDT relays are designed to provide RF signal repeatability over the frequency range by balancing the aggregate insertion loss of the relay"s design.- .
- * Repeatability Typ. dB: ±0.1. VSWR Typ. @ 1 GHz: 1.12:1. Insertion Loss Typ. dB @ 1 GHz: 0.13.**
Designed to provide improved RF signal repeatability over the frequency range. These relays are highly suitable for use in attenuator and other RF circuits.
RF300-12中文资料参数规格
技术参数
频率 3 GHz
额定电压DC 250 V
额定电流 1 A
绝缘电阻 1.00 GΩ
电容 0.4 pF
触点类型 DPDT
接触电阻 ≤0.15 Ω
功耗 450 mW
线圈电压 12 VDC
线圈电流 30.77 mA
线圈功率DC 450 mW
线圈电阻 390 Ω
额定电流Max 1 A
线圈电压DC 12 V
额定电压 28 VDC
封装参数
安装方式 Through Hole
引脚数 10
封装 TO-5
外形尺寸
高度 0.275 in
脚长度 0.75 in
封装 TO-5
物理参数
重量 2.55 g
工作温度 -55℃ ~ 85℃
其他
包装方式 Tube
符合标准
RoHS标准 RoHS Compliant
海关信息
ECCN代码 EAR99
HTS代码 8536410020
香港进出口证 NLR
在线购买RF300-12
型号： RF300-12
制造商：
Teledyne Relays
描述：Electromechanical Relay 12VDC 390Ω 1A DPDT 9.4x9.4x6.99mm THT High Reliability Relay
