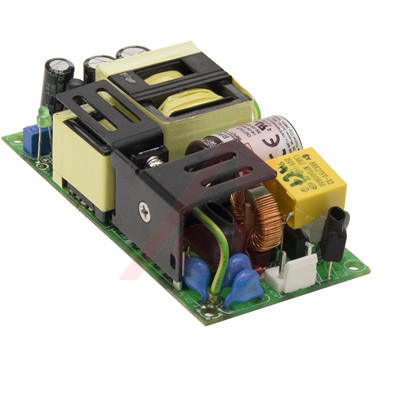

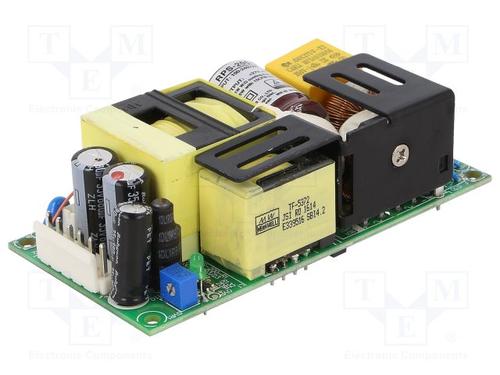

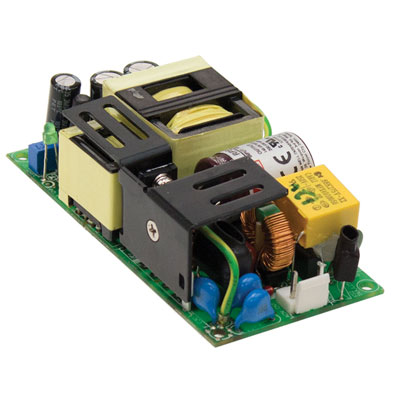

AC/DC 开框电源 供电单元, 医用, 1输出, 140 W, 200W @ 10CFM, 80V AC至264V AC, 固定/可调, 27 V
* 4"x2" Minature Size
* Universal AC Input / Full Range
* Medical Safety Approvals 2 x MOPP
* Suitable for BF Application with Appropriate System Consideration
* EMI Class B for Both Class I and Class II
* Low Leakage Current
* No Load Power Consumption
* High Efficiency up to 94%
* Protections: Short Circuit / Overload / Over Voltage / Over Temperature
* Cooling by Free Air Convectin for 84W and 120W with 10CFM Forced Air
* LED Indicator for Power On
* 3 Year Factory Warranty
额定电流 5.3 A
额定功率 200 W
输出接口数 1
输出电压 27 V
输出电流 7.5 A
输出功率 200 W
隔离电压 4 kV
输入电压DC Max 370 V
输入电压DC Min 113 V
输入电压AC Max 264 V
输入电压AC Min 80 V
额定电流Max 2 A
输出电流Max 5.3 A
输入电流Min 2 A
输出功率Max 200 W
工作温度Max 70 ℃
工作温度Min -30 ℃
电源电压 80.264VAC, 113.370VDC
输入电压 80VAC ~ 264VAC, 113VDC ~ 370VDC
引脚数 10
长度 101.6 mm
宽度 50.8 mm
高度 29 mm
重量 190 g
工作温度 -30℃ ~ 70℃
产品生命周期 Active
RoHS标准 RoHS Compliant
ECCN代码 EAR99
