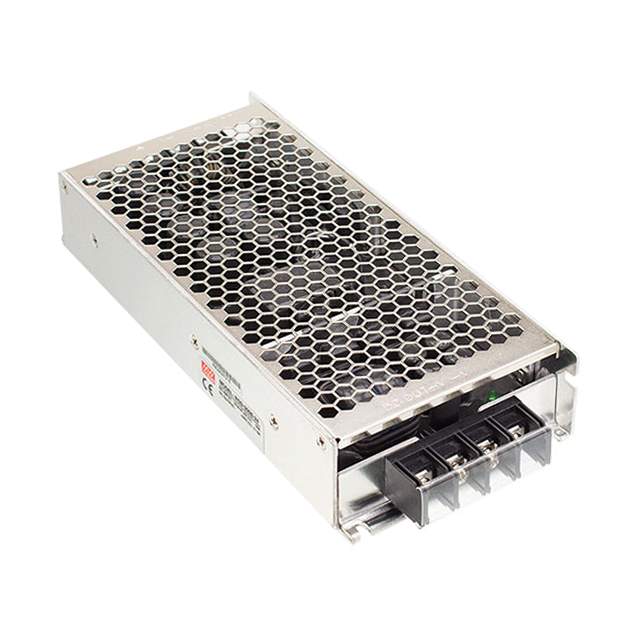

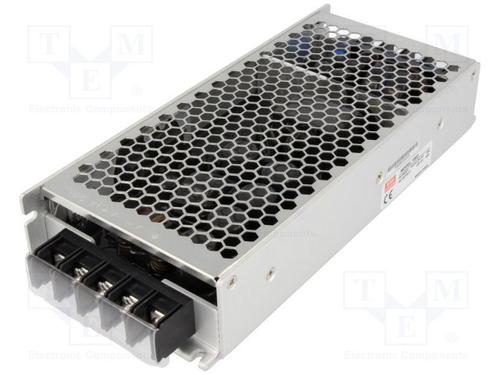

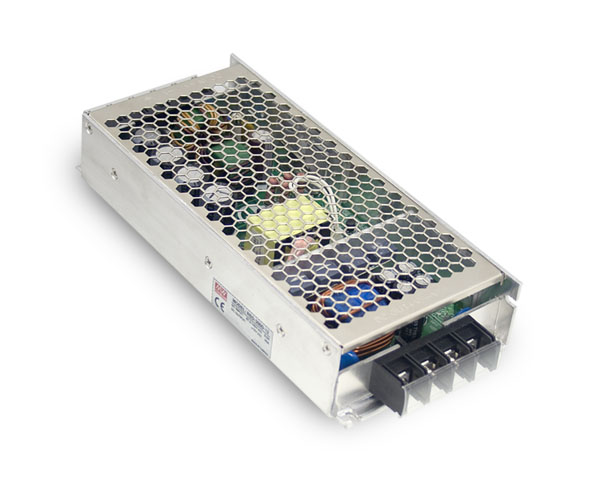

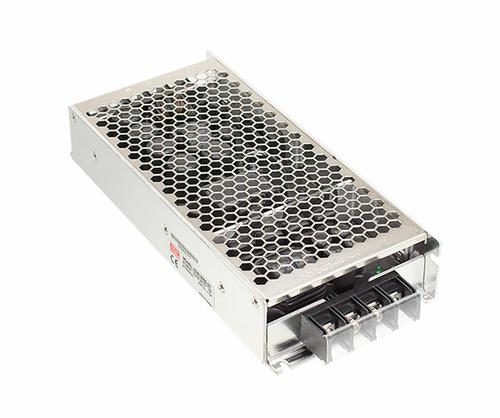

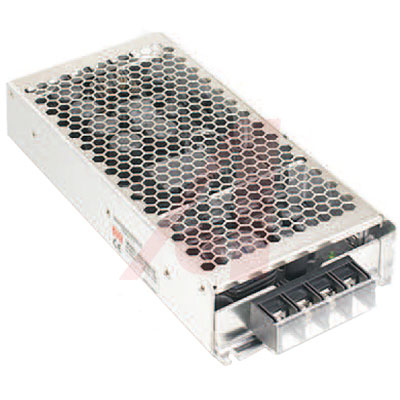

直流/直流转换器, 1输出, 302 W, 48 V, 6.3 A
Compliance to EN50155 and EN45545-2 railway standard
2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity
4000 VDC I/O isolation
Cooling by free air convection
Half encapsulated
Built-in constant current limiting circuit
1U low profile 40 mm
All using 105 Deg.C long life electrolytic capacitors
LED indicator for power on
100 percent full load burn-in test
3 years warranty
额定功率 302.4 W
输出接口数 1
输入电压DC 67.2V ~ 143V
输出电压 48 V
输出电流 6.3 A
输出功率 302.4 W
隔离电压 4000 V
输入电压Max 143 V
输入电压Min 67.2 V
输入电压DC Max 143 V
输入电压DC Min 67.2 v
输出电流Max 6.3 A
输出功率Max 302.4 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 67.2V ~ 143V
安装方式 Chassis
引脚数 5
长度 8.5 in
宽度 3.82 in
高度 40 mm
重量 1.19 kg
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE(商业),铁路
RoHS标准 RoHS Compliant
含铅标准 Lead Free
