RPT-160A

Mean Well 98.6W 3输出 嵌入式开关模式电源 SMPS RPT-160A, 127 → 370 V dc, 90 → 264 V ac输入

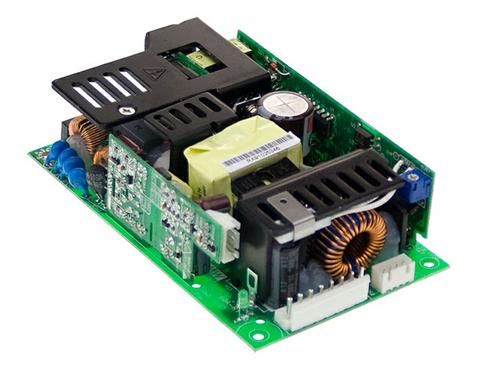

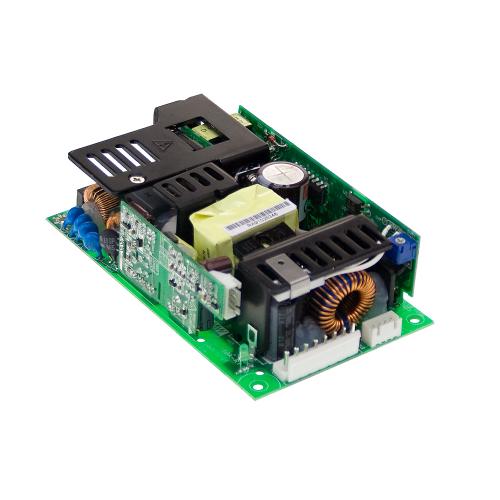

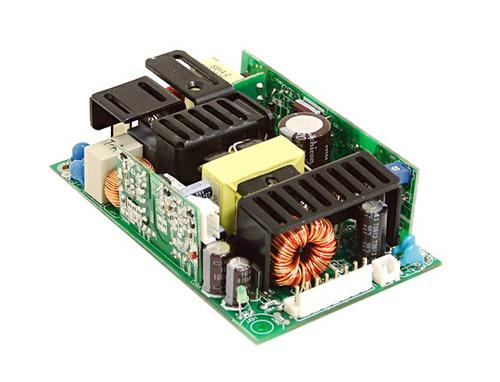

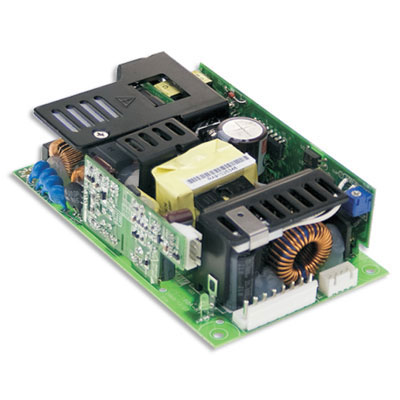

RPT-160 Series, Triple Output Power Supply 3x5inch

Miniature size 3x5 inch, high power density

High efficiency, long life and high reliability

Universal input voltage 90-264Vac, 127-370Vdc

Energy saving power supply

No load power consumption <0.5W

Medical safety approved

Low leakage current <200μA

5V 1A standby output

High operating temperature up to 70°C

Power good and fail safe signal output

Adjustable output voltage 4.75 to 5.5V main output

Power factor correction to EN 61000-3-2

EMC compliance to EN55011, EN 55022 Class B

Short circuit, overload over-voltage and over-temperature protection

Extra peak load rating with 20.5CFM forced air cooling

### 注

De-rating above 40°C for free air convection, 50°C for forced air cooling with 20.5CFM. Output current and power stated for free air convection.

MTBF to MIL-HDBK-217F 25°C.

### 标准

EN 60601-1, UL 60601-1

### 认可

TUV, CB, UL recognised component for Canada & US
