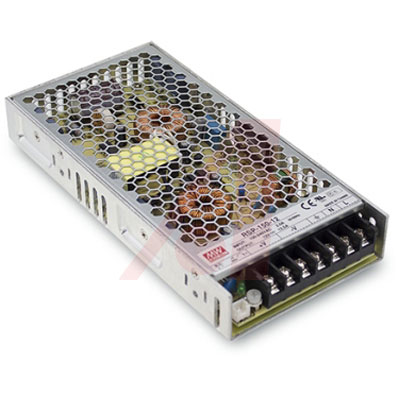

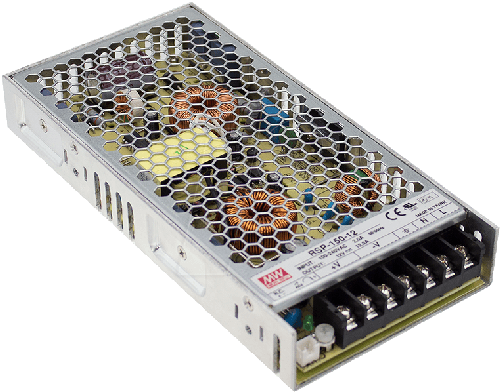

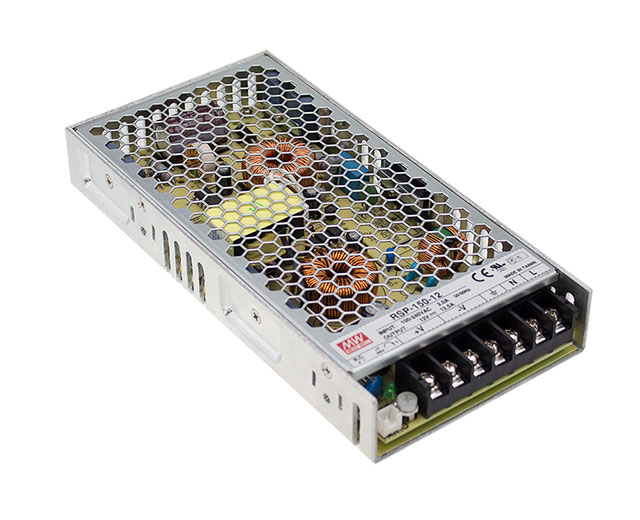

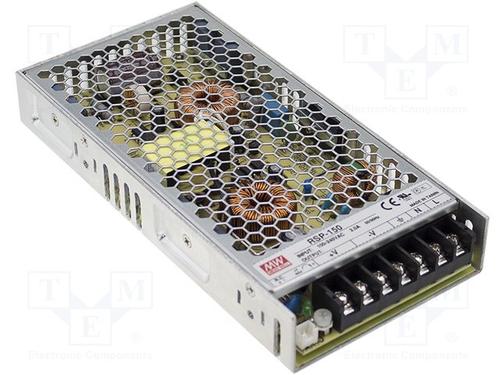

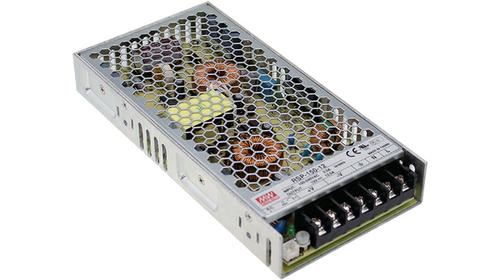

AC/DC 闭合电源 供电单元, ITE, 1 输出, 151.2 W, 27 V, 5.6 A
封闭式 AC DC 转换器 1 输出 27V - - - 5.6A 85 ~ 264 VAC,120 ~ 370 VDC 输入
得捷:
AC/DC CONVERTER 27V 151W
欧时:
Power Supply Switch Mode 27V 5.6A 151W
e络盟:
AC/DC 闭合电源 供电单元, ITE, ITE, 1 输出, 151.2 W, 27 V, 5.6 A
艾睿:
With this RSP-150-27 AC to DC power supply from Mean-Well USA, Inc. your electronic device will be able to operate by using direct current instead of alternating current. It has a voltage of 27 V and maximum output power of 151.2 W. This part&s;s single output can handle a current up to 5.6 A. This part has a minimum operating temperature of -30 °C and a maximum of 70 °C.
Allied Electronics:
Power Supply; AC-DC; 27V; 5.6A; 100-264V In; Enclosed; DIN Rail; PFC; RSP-150 Series
Jameco:
AC to DC Switching Enclosed Power Supply with PFC Function 27 Volts 5.6 Amps 151.2 Watts
安富利:
AC/DC Power Supply Single-OUT 27V 5.6A 151.2W
TME:
Pwr sup.unit: switched-mode; modular; 151.2W; 27VDC; 199x99x30mm
CDI:
AC/DC 150W 27V Single Output Power Supply, Enclosed
额定功率 151.2 W
输出接口数 1
输出电压 27 V
输出电流 5.6 A
输出功率 151 W
输入电压DC Max 370 V
输入电压DC Min 120 V
输入电压AC Max 264 V
输入电压AC Min 85 V
额定电流Max 1.6 A
输出电流Max 5.6 A
输入电流Min 1.6 A
输出功率Max 151.2 W
工作温度Max 70 ℃
工作温度Min -30 ℃
电源电压 85.264VAC, 120.370VDC
输入电压 100VAC ~ 264VAC
安装方式 Chassis
引脚数 9
长度 7.83 in
宽度 3.89 in
高度 1.18 in
颜色 Silver
重量 600 g
工作温度 -30℃ ~ 70℃
产品生命周期 Active
制造应用 ITE(商业)
RoHS标准 RoHS Compliant
含铅标准 Lead free
